Steel 'V' Grooved

  • Range:Wheels & Castors
  • Category:Castors & Wheels
  • Group:H Series (1500kg)
  • Style:Steel 'V' Grooved
Search on complete or part product code
Steel 'V' Grooved
Steel 'V' Grooved

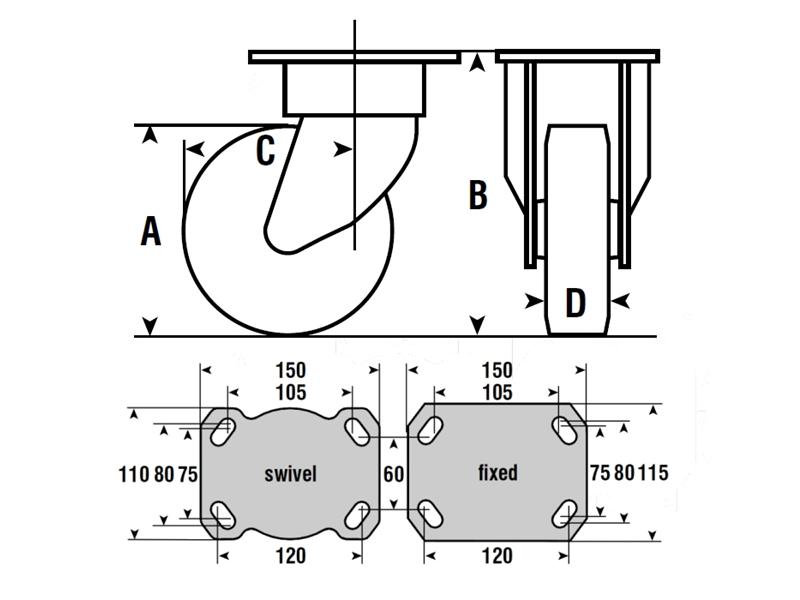

ToolboxDrawingsPDFCAD Download
Part No. A B C D Load Rating Fixed/Swivel
HS/SVT100/40BJ 100 152 102 40 1100kg Swivel
HS/SVT150/45BJ 150 202 134 45 1500kg Swivel
HS/SVT200/50BJ 200 252 166 50 1500kg Swivel
HS/SVT250/60BJ 250 303 207 60 1500kg Swivel
HF/SVT100/40BJ 100 152 40 1100kg Fixed
HF/SVT150/45BJ 150 202 45 1500kg Fixed
HF/SVT200/50BJ 200 252 50 1500kg Fixed
HF/SVT250/60BJ 250 303 60 1500kg Fixed

Various wheel options available
