A Series Axle Assembly

Range:Wheels & Castors
Category:Axles
Group:Axle Assembly
Style:A Series Axle Assembly

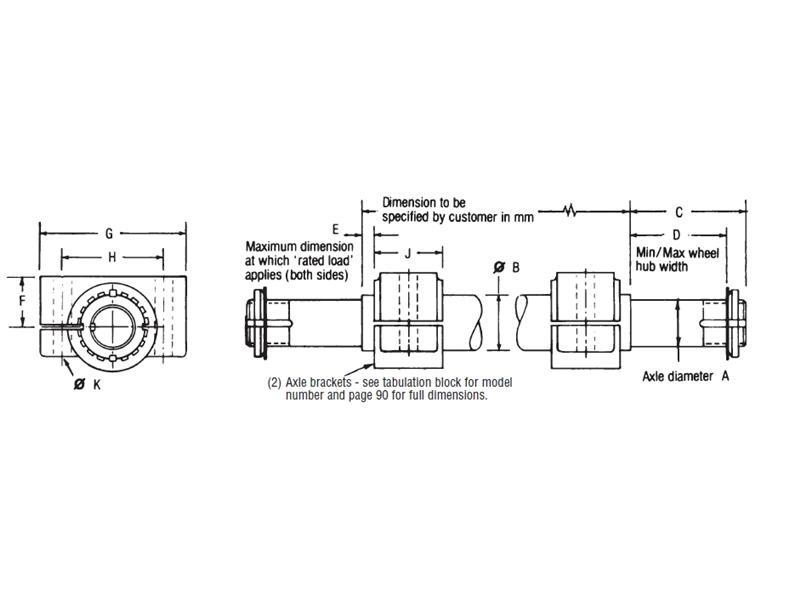

A Series Axle Assembly

A Series Axle Assembly

Part No.	A	Max Load	B	C	D Min	D Max	E	F	G	H	I	J	K	L	Axel Bracket
A25/****	25	1500	30	62	40	52	75	35	105	70	40	12	305, 610, 915, 1221	B1/35
A30/****	30	2500	35	75	50	65	75	35	105	70	40	12	305, 610, 915, 1222	B1/40
A35/****	35	3000	40	97	60	85	100	35	105	70	40	12	305, 610, 915, 1223	B2/50
A40/****	40	4000	50	113	85	100	100	45	130	90	50	16	305, 610, 915, 1224	B3/60
A50/****	50	6300	60	128	85	110	120	60	170	120	65	20	305, 610, 915, 1225	B3/70
A60/****	60	8500	70	130	85	110	120	60	170	120	65	20	305, 610, 915, 1226	B4/85
A75/****	75	12000	85	150	85	110	150	75	210	150	80	24	305, 610, 915, 1220	B1/30
