Anti Static Extractor Ventilators

  • Range:Air Amplifiers
  • Category:Extractor Ventilators
  • Group:Anti Static Extractor Ventilators
  • Style:Anti Static Extractor Ventilators
Search on complete or part product code

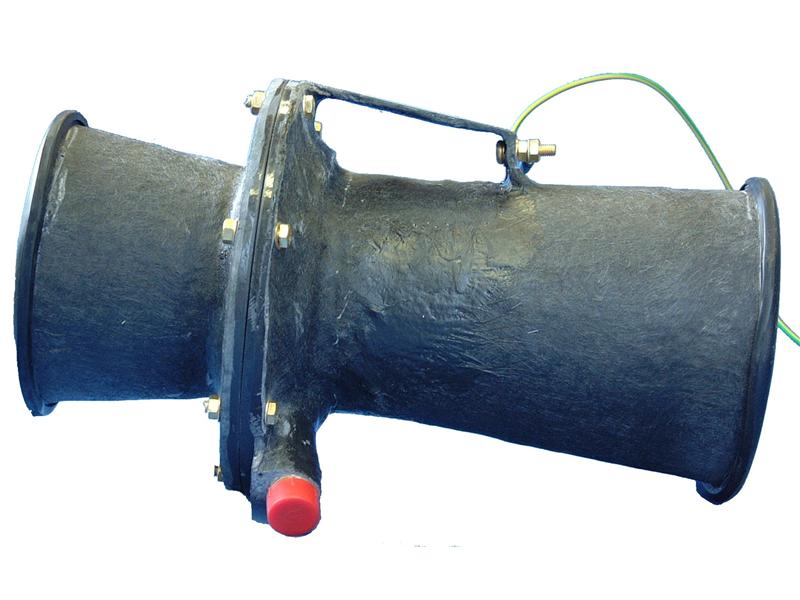

The Brauer Anti-static Extractor Ventilators are wound with a copper cable within the GRP skin layers, This cable is terminated to earth by the continuation of the copper cable at the position of the Extractor Ventilator handle, thus allowing their use in areas where combustion of gases could be a problem without such. Applications would include areas where combustalble gases are present and it is important to quickly vent and evacuate large chambers carrying high volumes of air, gas or fume,  venting holds of  ship and tankers, or mine shafts or underground working tunnels.. The Extractor ventillators produce very large volume air flows, these Brauer products are at the highest level of volume air movement, made from GRP they are able to perform safely in enviroments where water, chemicals or corrosion may be an issue, they are also light weight and very portable.

Anti Static Extractor Ventilators
Anti Static Extractor Ventilators
ToolboxDrawingsPDFCAD Download

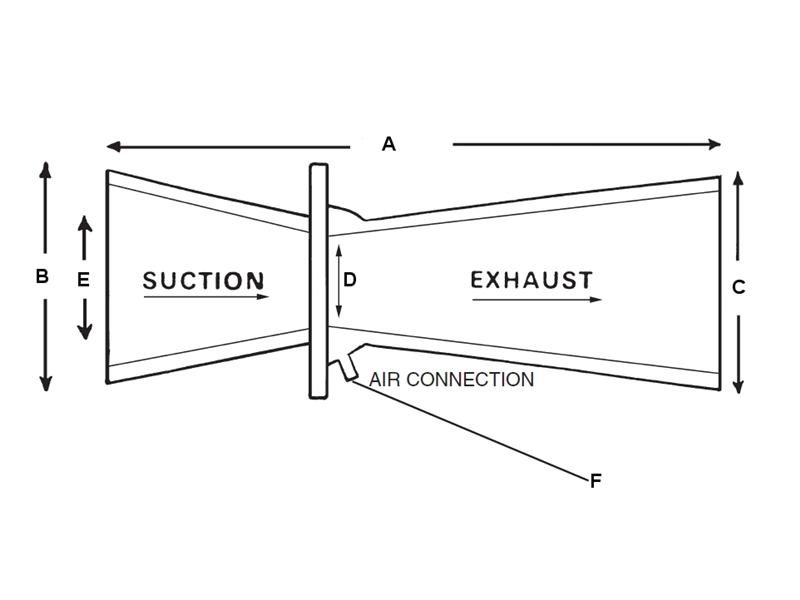

Part No. A B C D E F Price Qty Buy
AEV4 342.9 152.4 152.4 100 101.6 G1/2 Sign In for prices
AEV6 635 247.65 247.65 150 152.4 G1/2 Sign In for prices
AEV8 863.6 279.4 304.8 200 203.2 G1/2 Sign In for prices
