Extractor Ventilators

  • Range:Air Amplifiers
  • Category:Extractor Ventilators
  • Group:Extractor Ventilators
  • Style:Extractor Ventilators
Search on complete or part product code

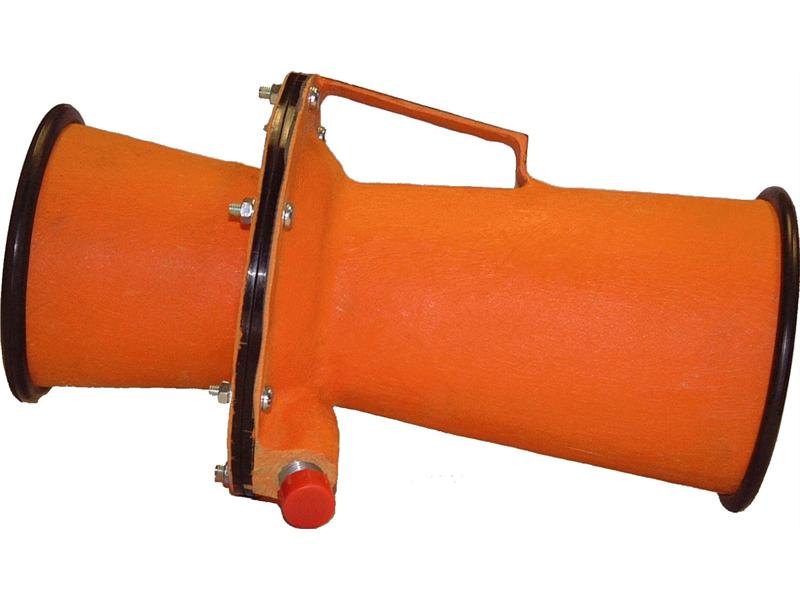

In some applications it is important to quickly vent and evacuate large chambers carrying high volumes of air, gas or fume, for example venting brick kilns after the bricks have been fired for quick unloading, venting holds of tankers, not to mention the use in special effects at large public events for ticker tape and glitter strip spraying. The extractor ventillators produce very large volume air flows, these Brauer products are at the highest level of volume air movement, made from GRP they are able to perform safely in environments where water, chemicals or corrosion may be an issue, they are also light weight and very portable.

Extractor Ventilators
Extractor Ventilators
ToolboxDrawingsPDFCAD Download

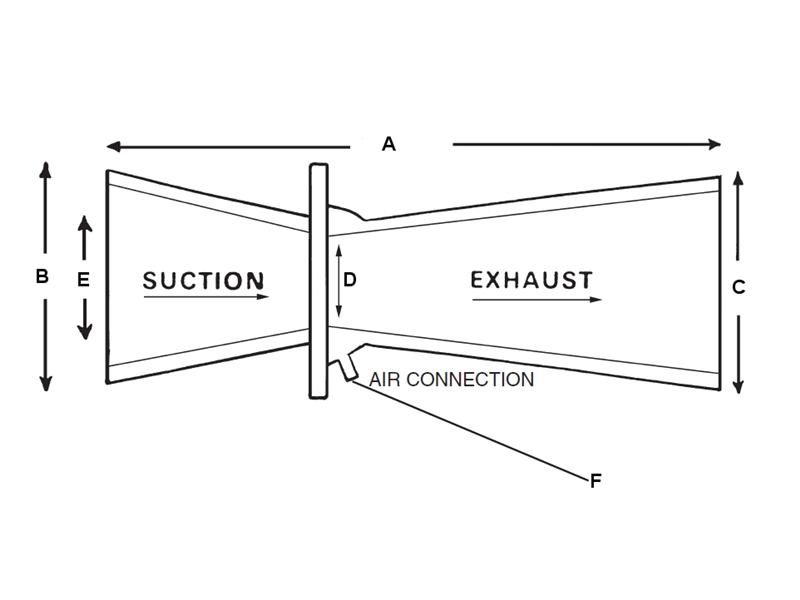

Part No. A B C D E F Price Qty Buy
EV2 177.8 66.7 73 50 50.8 G1/2 Sign In for prices
EV3 228.6 101.6 101.6 75 76.2 G1/2 Sign In for prices
EV4 342.9 152.4 152.4 100 101.6 G1/2 Sign In for prices
EV6 635 247.65 247.65 150 152.4 G1/2 Sign In for prices
EV8 863.6 279.4 304.8 200 203.2 G1/2 Sign In for prices
