Polyurethane Wheels Press on Band

Range:Wheels & Castors
Category:Wheels
Group:Polyurethane Wheels (Heavithane)
Style:Polyurethane Wheels Press on Band

Brauer PRESS-ON-BAND Wheels unlike Brauer Direct-Bonded wheels, have the tyre bonded to a thin steel band which is press fitted to the wheel centre under considerable force. This alternative tyre system allows the tyre only to be replaced when worn, saving money by not replacing the wheel hub and bearings.

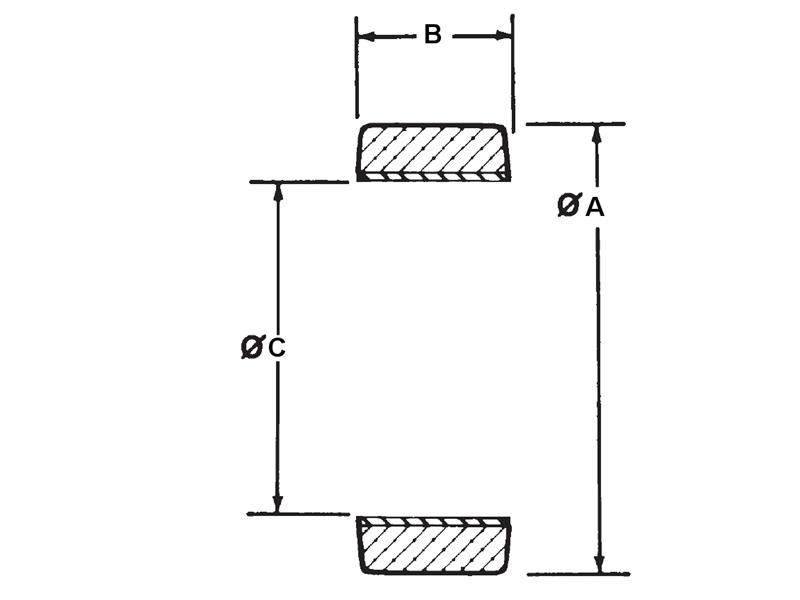

Part No.	A	B	C Max	E	Max Load Kg	Weight Kg
PH250/75	250	75	100	150	2000	20	Show Variants
PH250/125	250	125	75	100	3400	33	Show Variants
PH300/75	300	75	75	100	2550	28	Show Variants
PH350/100	350	100	125	175	3600	40	Show Variants
PH380/75	380	75	125	175	2700	36	Show Variants
PH380/100	380	100	125	175	3600	45	Show Variants
PH380/125	380	125	125	175	4500	53	Show Variants
PH400/100	400	100	125	175	3800	65	Show Variants
PH400/125	400	125	125	175	4800	80	Show Variants
PH460/75	460	75	125	175	3200	45	Show Variants
PH460/100	460	100	125	175	4200	52	Show Variants
PH500/75	500	75	125	175	3600	65	Show Variants
PH500/100	500	100	125	175	4800	70	Show Variants

Other bore sizes and types available on request, including imperial
