Aluminium Alloy Adjustable Airmovers

  • Range:Air Amplifiers
  • Category:Adjustable Air Amplifiers
  • Group:Aluminium Alloy
  • Style:Aluminium Alloy Adjustable Airmovers
Search on complete or part product code

Sometimes it is necessary to vary the outlet air flow, allowing the engineer to gain an optimum performance. This is possible with the adjustbable type of Airmover from Brauer, a lock ring is loosened which allows the body tail to be rotated on its fine thread to gain the most effective output volume air flow. The standard ideal air gap for normal applications is 0.05mm to  0.10mm

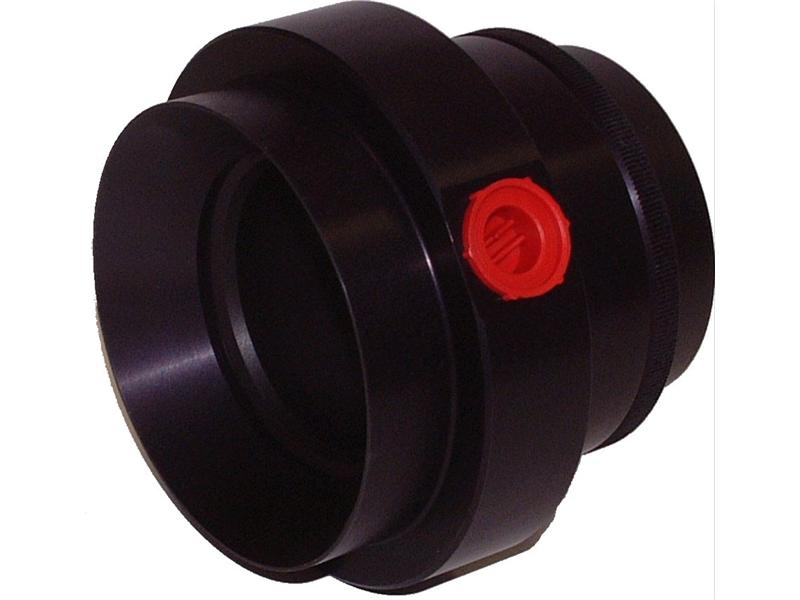

Aluminium Alloy Adjustable Airmovers
Aluminium Alloy Adjustable Airmovers

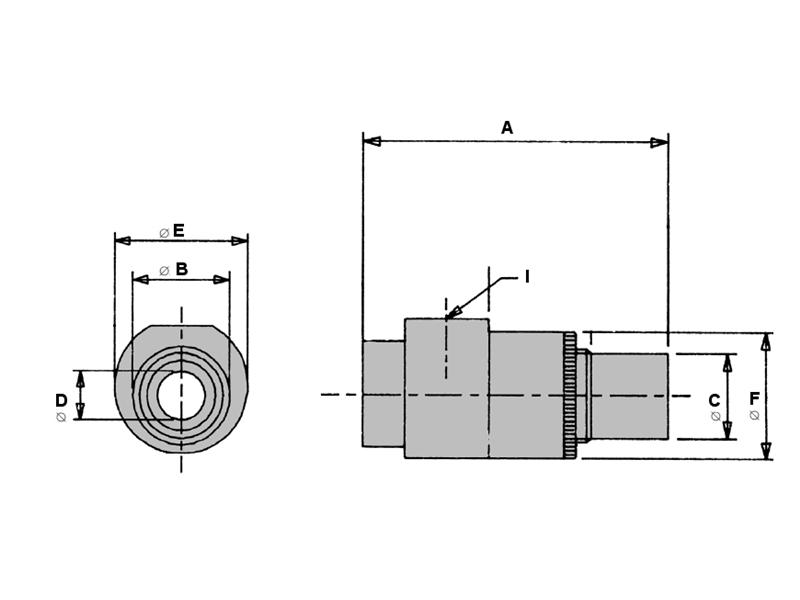

DrawingsPDFCAD Download
Part No. A B C D E F G
AM10A 73 25 20 10 35 30 G1/8 CAD / BUY
AM12A 75 19 19 12 25.4 25.4 G1/8 CAD / BUY
AM20A 74.5 38 30 20 44.5 38 G1/4 CAD / BUY
AM35A 80 49 58 35 68 58 G3/8 CAD / BUY
AM40A 98 50 63.5 40 70 63.5 G3/8 CAD / BUY
AM60A 95 76 95 60 115 90 G3/8 CAD / BUY
AM75A 132 96 118 75 135 112 G1/2 CAD / BUY
AM125A 225 175 175 125 199 186 G3/4 CAD / BUY
