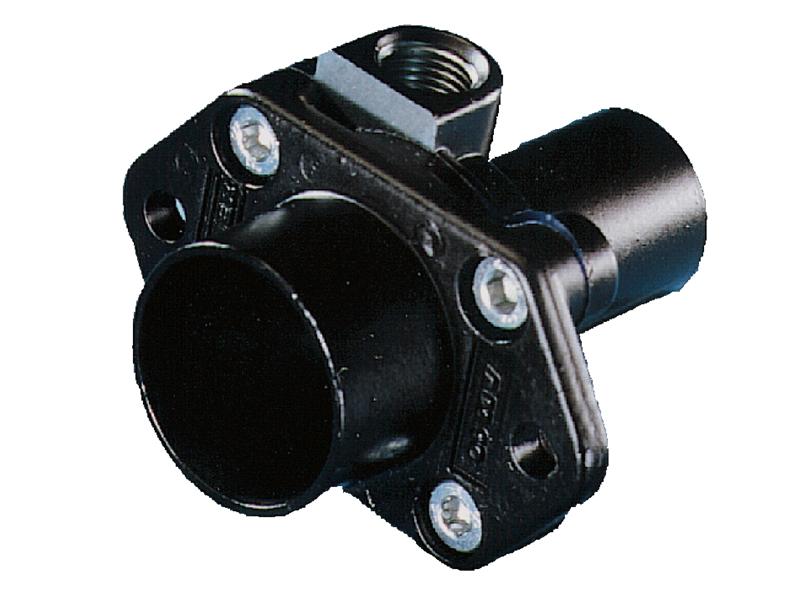

AM20

  • Range:Air Amplifiers
  • Category:Fixed Gap Air Amplifiers
  • Group:Fixed Gap Airmovers
  • Style:Standard Fixed Gap
Search on complete or part product code

Material: Zinc and aluminium alloy
Weight: 0.250Kg
Standard Gap: 0.05mm
dB(A) at: 5.5 bar is 79
Shims: 0.04, 0.05, 0.08mm Optional Extra
Standard Inlet Thread: G1/4
Options: 1/4 NPT, 1/4 NPTF
AM20
AM20

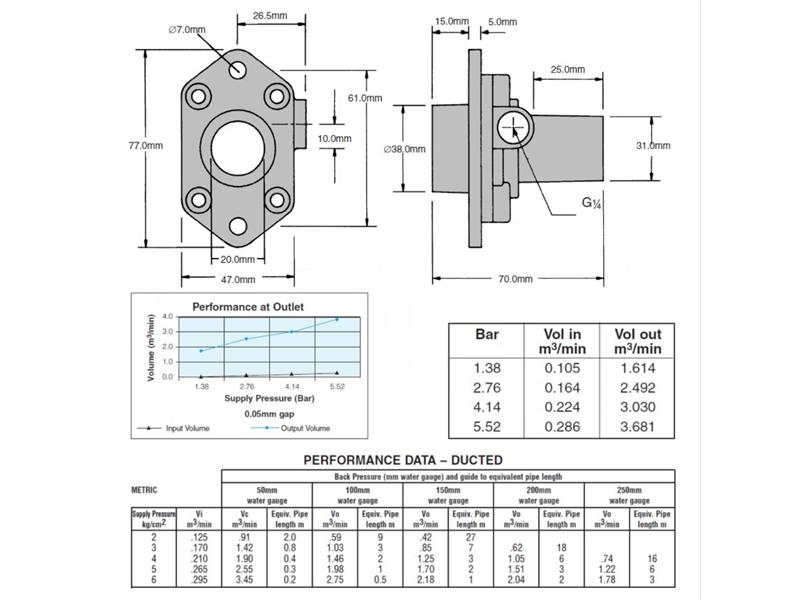

Toolbox Drawings PDF
