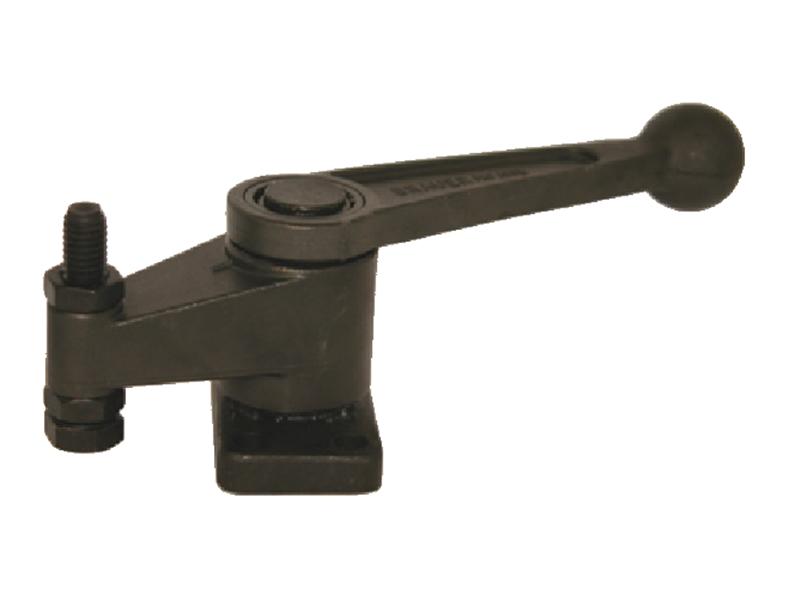

Cam Swing Clamps
Cam Swing Clamps
ToolboxDrawingsPDFCAD Download

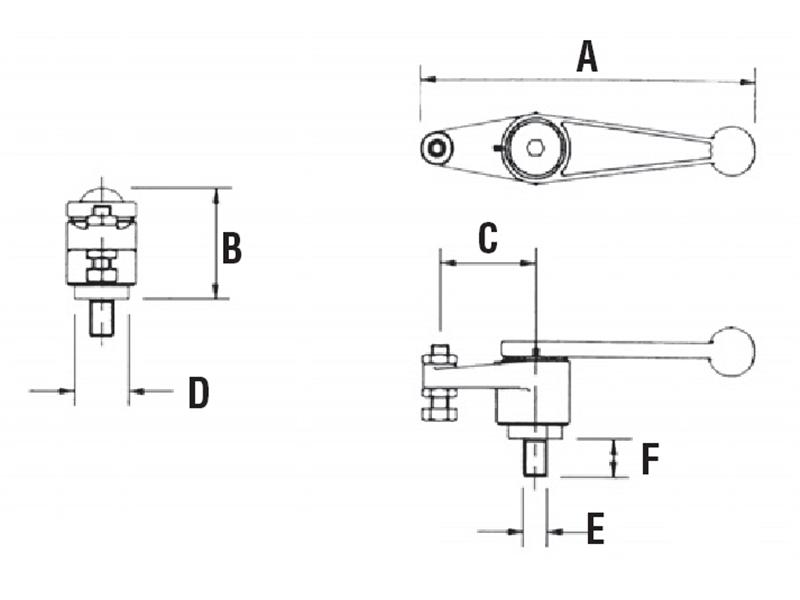

Part No. A B C D E F G Holding Force Weight
CS300 111 38 32 18 M8x1.25 10 - 300daN 0.20Kg Show Variants
CS800 150 54 42 28 - 7.5 6.3 800daN 0.40Kg Show Variants
CS1200 200 77 55 37 - 10 8.3 1200daN 0.90Kg Show Variants
