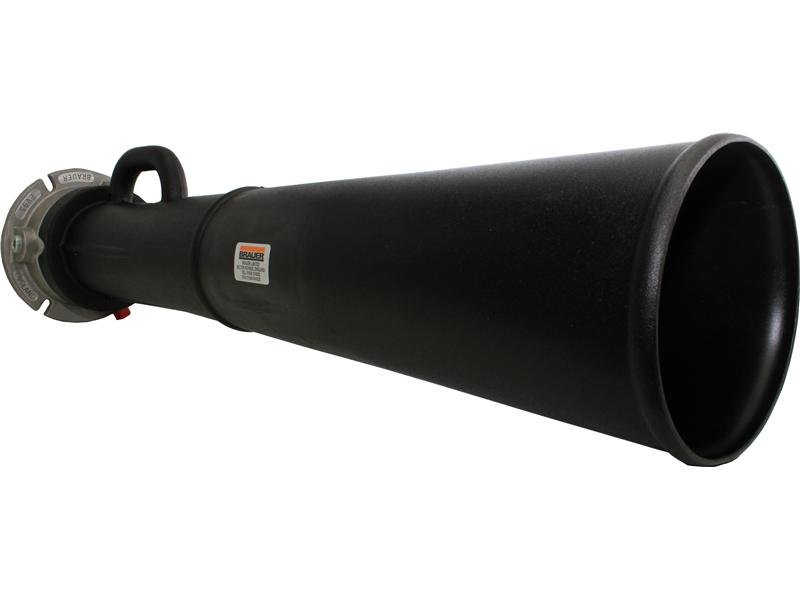

EV95

Weight : 3Kg

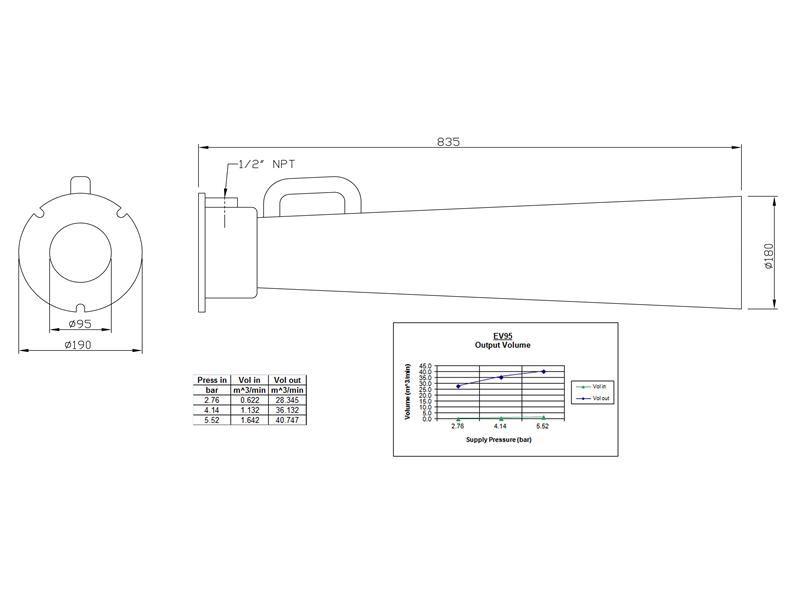

Dimensions (dia/h) : 20 x 84 cm
Inlet connection : 1/2" NPT
Bore (dia) at inlet : 95mm
Bore (dia) at outlet : 180mm
Flange (dia) : 190 mm
Compressor Hp : 9.3

@ 40 PSI inlet air:
Free air : 1001 cfm / 1702 cubic (m)/hr
Air consumption : 22 cfm / 37 cubic (m)/hr
Induction ratio : 46 to 1

@ 80 PSI inlet air :
Free air : 1439 cfm / 2446 cubic (m)/hr
Air consumption : 58 cfm / 99 cubic (m)/hr
Induction ratio : 20 to 1
