Home | Wheels & Castors | Castors | Twin Wheel T Series (5000kg) | Fixed Castor

Fixed Castor

  • Range: Wheels & Castors
  • Category:Castors
  • Group:Twin Wheel T Series (5000kg)
  • Style:Fixed Castor
Search on complete or part product code

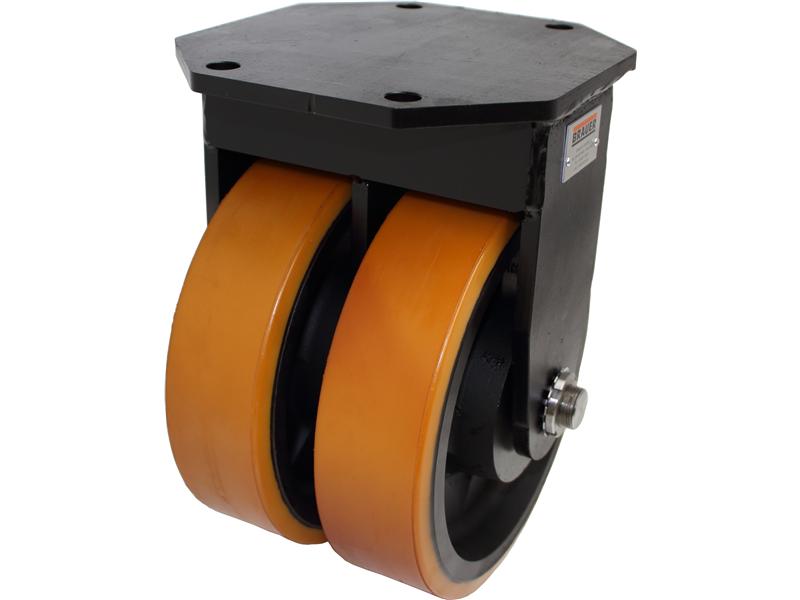

2TF & 2TS Twin Wheel heavy duty industrial castors are based on the "T" series design, fitted with two "Heavithane" Vulkollan Polyurethane tyred wheels up to 300mm diameter by 75mm wide. Using 2 wheels allows for heavier loads without needing to increase the diameter of the wheels thus retaining a compact overall height. Heavithane tyres offer comparatively low tractive effort, low noise, high wear resistance and running surface preservation * Max towing speed 6kph
Fixed Castor
Fixed Castor

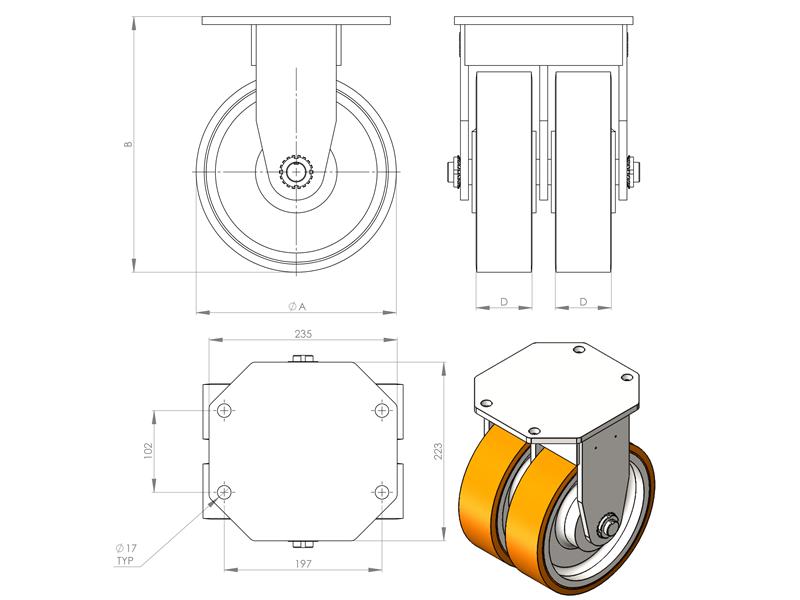

DrawingsPDF
Part No. A B D Load Capacity (kg) Wheel Type
2TF/H200/75TB 200 268 75 3500kg Polyurethane Direct Bond
2TF/H250/70TB 250 319 70 4000kg Polyurethane Direct Bond
2TF/H300/75TB 300 369 75 4600kg Polyurethane Direct Bond
2TF/NFT200/75TB 200 268 75 4000kg Nylon Flat Tread
2TF/NFT250/70TB 250 319 70 4500kg Nylon Flat Tread
2TF/NFT300/75TB 300 369 75 5000kg Nylon Flat Tread
2TF/SFT200/75TB 200 268 75 4000kg Steel Flat Tread
2TF/SFT250/70TB 250 319 70 4500kg Steel Flat Tread
2TF/SFT300/75TB 300 369 75 5000kg Steel Flat Tread

Various wheel options available
