Reinforced Threaded Inserts

  • Range:Standard Parts
  • Category:Threaded Inserts
  • Group:Threaded Inserts
  • Style:Reinforced Threaded Inserts
Search on complete or part product code

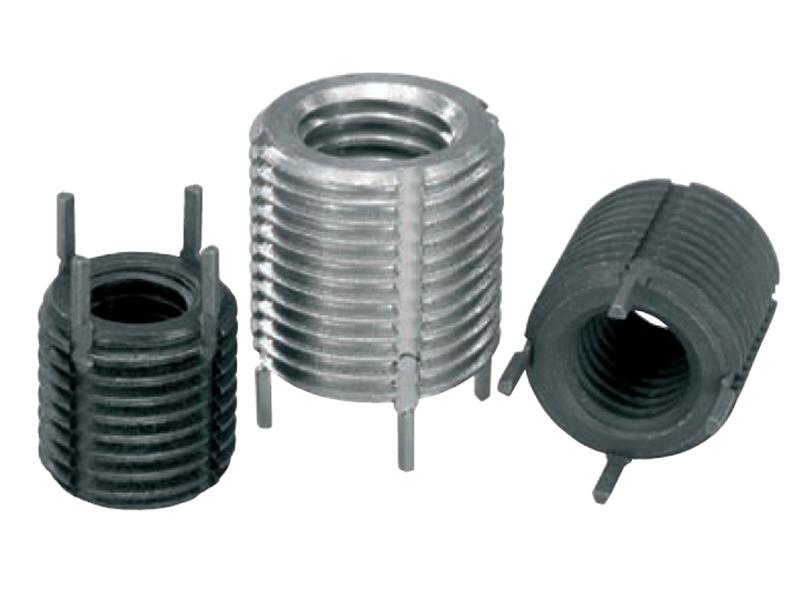

Reinforced Threaded Inserts
Reinforced Threaded Inserts

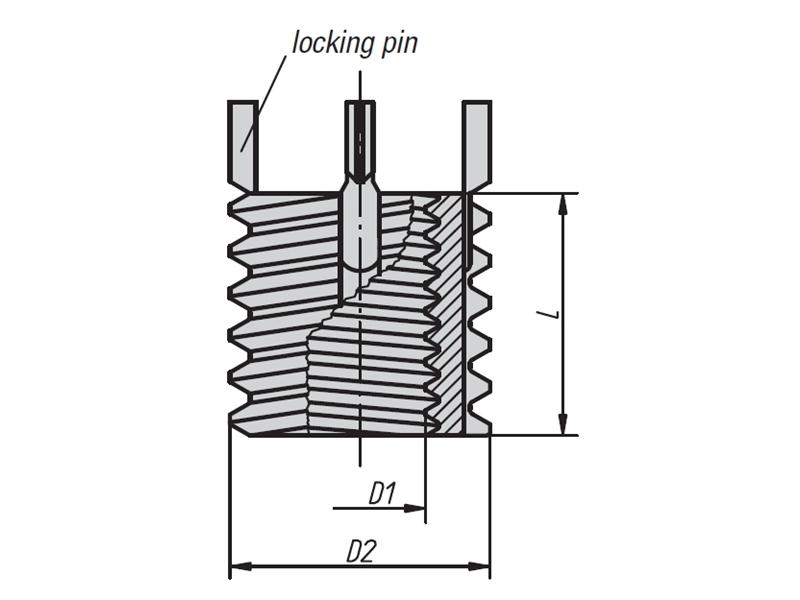

DrawingsPDF
Part No. D1 D2 L
07661-04 M4 M8 8 Show Options
07661-05 M5 M10x1.25 10 Show Options
07661-06 M6 M12x1.25 12 Show Options
07661-08 M8 M14x1.5 14 Show Options
07661-08X1 M8x1 M14x1.5 14 Show Options
07661-10 M10 M16x1.5 16 Show Options
07661-10X125 M10x1.25 M16x1.5 16 Show Options
07661-12 M12 M18x1.5 18 Show Options
07661-12X125 M12x1.25 M18x1.5 18 Show Options
07661-14 M14 M20x1.5 20 Show Options
07661-14X15 M14x1.5 M20x1.5 20 Show Options
07661-16 M16 M22x1.5 22 Show Options
07661-16X15 M16x1.5 M22x1.5 22 Show Options
07661-18X15 M18x1.5 M24x1.5 24 Show Options
07661-20 M20 M30x2 30 Show Options
07661-20X15 M20x1.5 M30x2 30 Show Options
07661-22X15 M22x1.5 M32x2 32 Show Options
07661-24 M24 M33x2 33 Show Options
07661-24X2 M24x2 M33x2 33 Show Options
