Home | Toggle Clamps | Manual Clamps | Cam Clamps | Vertical Cam

Vertical Cam

  • Range:Toggle Clamps
  • Category:Manual Clamps
  • Group:Cam Clamps
  • Style:Vertical Cam
Search on complete or part product code
Vertical Cam
Vertical Cam

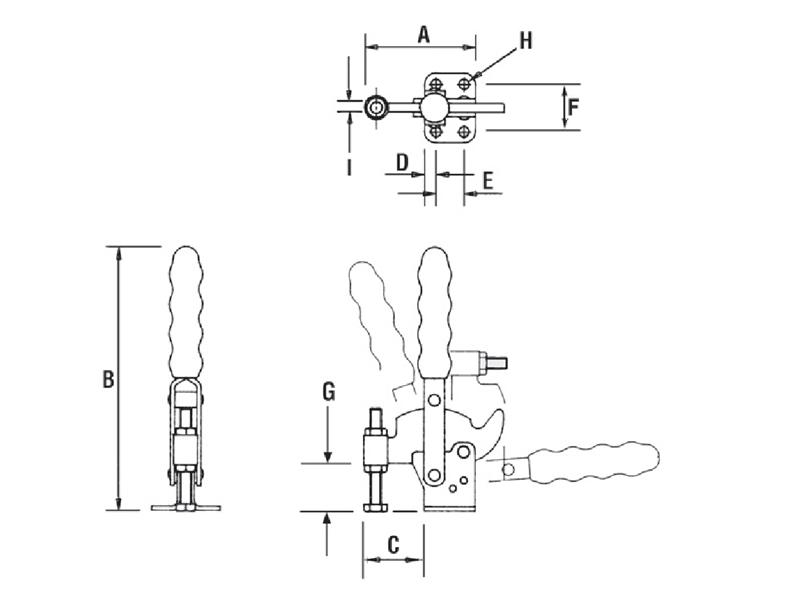

ToolboxDrawingsPDFCAD Download
Part No. A B C D E F G H Holding Force Weight Price Qty Buy
CV75 52 98 26 5 16 24 9.5 M5x35 75daN 0.05Kg Sign In for prices
CV250 74 176 39 8 19 32 21.5 M8x60 250daN 0.35Kg Sign In for prices
CV350 116 220 66 9 32 45 25 M10x80 350daN 0.70Kg Sign In for prices
