Home | Wheels & Castors | Castors | H Series (1500kg) | Polyurethane Tyre

Polyurethane Tyre

  • Range: Wheels & Castors
  • Category:Castors
  • Group:H Series (1500kg)
  • Style:Polyurethane Tyre
Search on complete or part product code

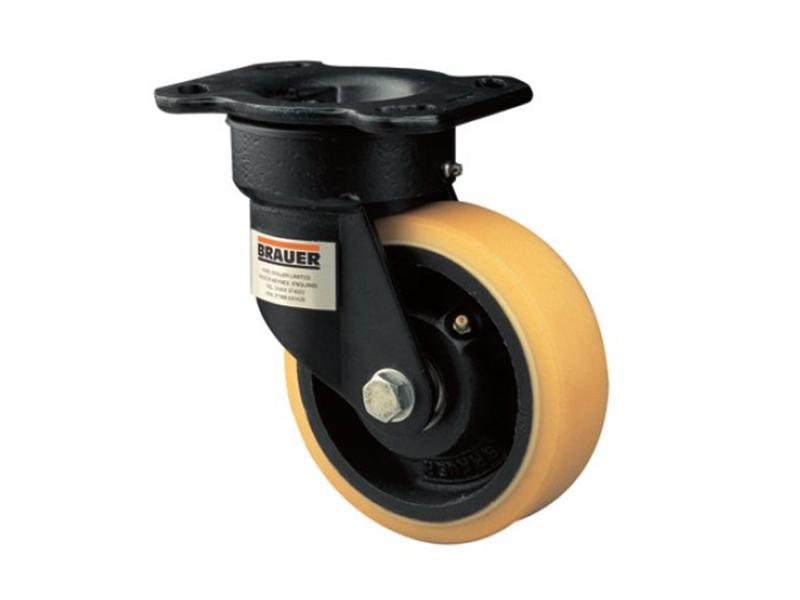

The "H" series castors are fitted with Brauer Vulkollan  "Heavithane" polyurethane wheels which are durable by design and able to withstand arduous environments, taking a maximum load of 1500kg (limited by wheel choice). The H series Vulkollan 'Heavithane' polyurethane castors come in swivel and fixed castor brackets with wheel diameters of 100mm through to 300mm diameter and wheel widths of 30,35,40,45 and 50mm. The castor can be ordered with options: wheel lock (add suffix W), swivel direction lock (add suffix D) or swivel lock wheel lock and wheel brake (add suffix F).

Polyurethane Tyre
Polyurethane Tyre

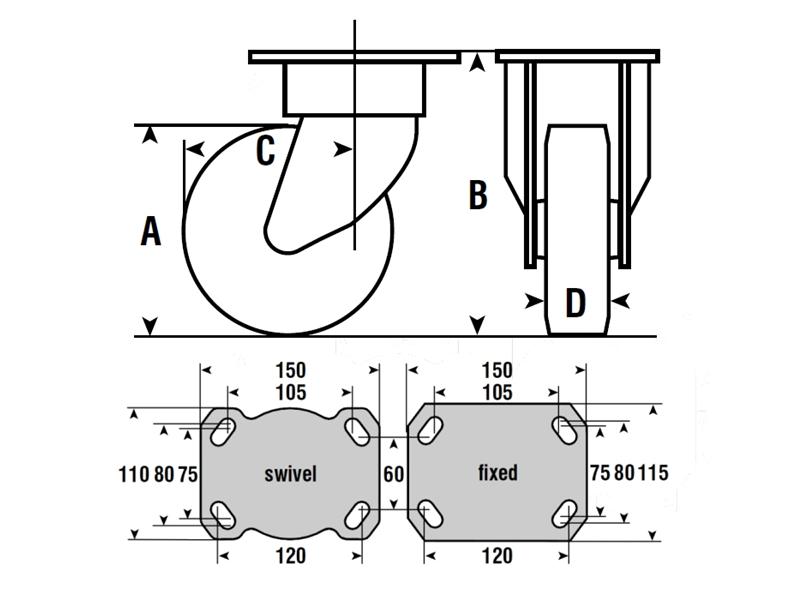

DrawingsPDF
Part No. A B C D Load Rating Fixed/Swivel
HS/H100/40BJ 100 152 102 40 450kg Swivel
HS/H125/30BJ 125 177 118 30 400kg Swivel
HS/H125/45BJ 125 177 118 45 600kg Swivel
HS/H150/35BJ 150 202 134 35 700kg Swivel
HS/H150/50BJ 150 202 134 50 900kg Swivel
HS/H200/40BJ 200 252 166 40 900kg Swivel
HF/H100/40BJ 100 152 40 450kg Fixed
HF/H125/30BJ 125 177 30 400kg Fixed
HF/H125/45BJ 125 177 45 600kg Fixed
HF/H150/35BJ 150 202 35 700kg Fixed
HF/H150/50BJ 150 202 50 900kg Fixed
HF/H200/40BJ 200 252 40 900kg Fixed

Various wheel options available
