Home | Wheels & Castors | Castors | ISOWG Series (2300kg) | Polyurethane Tyre

Polyurethane Tyre

  • Range: Wheels & Castors
  • Category:Castors
  • Group:ISOWG Series (2300kg)
  • Style:Polyurethane Tyre
Search on complete or part product code

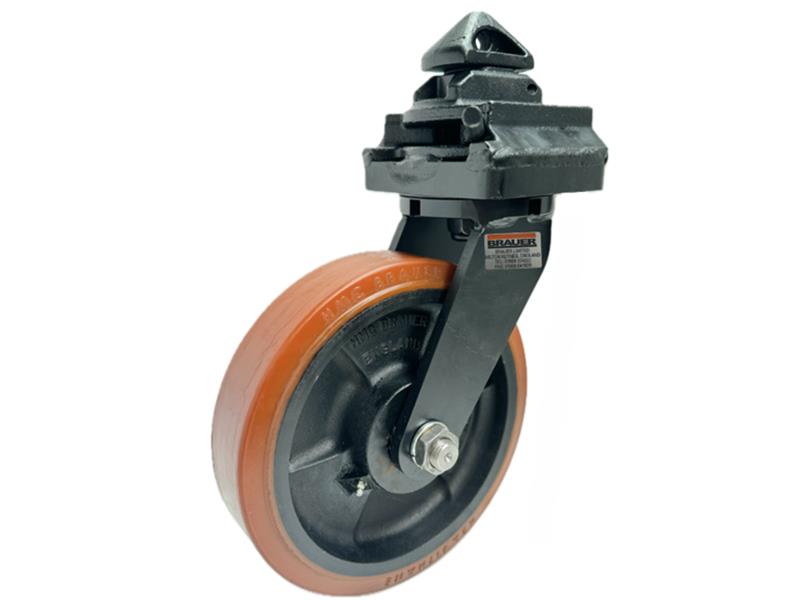

The ISOWG range is one of Brauer’s most popular heavy-duty cargo castor selections, designed for maximum durability and efficiency. With a load capacity of up to 2300kg (dependent on wheel choice), these castors excel when paired with Brauer’s high-grade Vulkollan ‘Heavithane’™ polyurethane wheels. Available in Swivel and Fixed cargo castor brackets, the ISOWG range offers wheel diameters from 200mm to 300mm and wheel widths from 70mm to 75mm. For specialised requirements, Brauer provides modification options tailored to customer specifications. The integrated heavy-duty twist-lock mechanism enables fast, secure, and hassle-free installation. Designed for efficient ISO shipping container movement, these castors eliminate the need for cranes, gantries, or forklift trucks—containers can be repositioned using a tow truck or manually by one or two operators, significantly reducing time and costs. The ISOWG castors are available with individual wheel locks (W) and swivel locks (D). To request these features, simply add ‘D’ or ‘W’ as a suffix to the part numbers listed below.
Polyurethane Tyre
Polyurethane Tyre

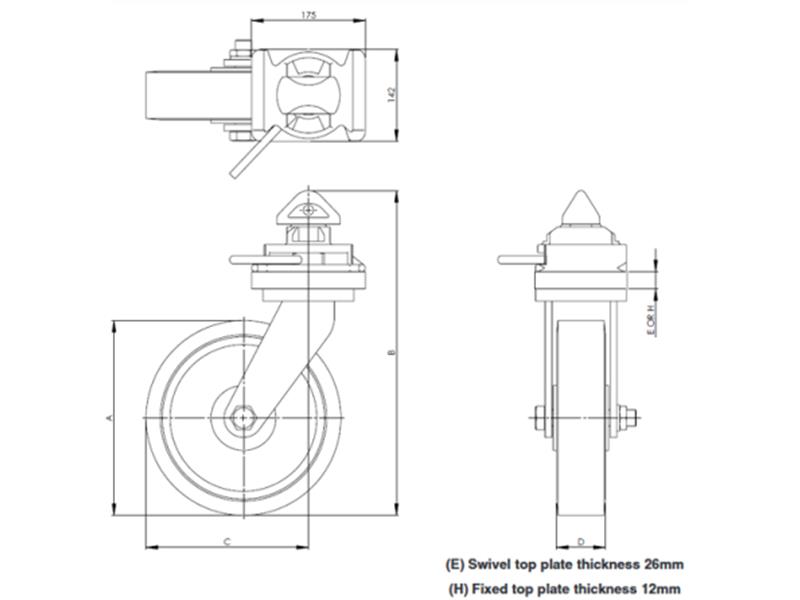

DrawingsPDF
Part No. Wheel Diameter Overall Castor Height Swivel Radius Tread Width Max Load Rating Wheel Bearing Type Approx. Weight Fixed/Swivel
ISOWGS/H200/75TB 200 393 160 75 1750kg Taper Roller 30kg Swivel
ISOWGS/H250/70TB 250 438 200 70 2000kg Taper Roller 28kg Swivel
ISOWGS/H300/75TB 300 503 250 75 2300kg Taper Roller 32kg Swivel
ISOWGF/H200/75TB 200 393 160 75 1750kg Taper Roller 30kg Fixed
ISOWGF/H250/70TB 250 438 200 70 2000kg Taper Roller 28kg Fixed
ISOWGF/H300/75TB 300 503 250 75 2300kg Taper Roller 32kg Fixed

Various wheel options available
