Home | Standard Parts | Cam Levers | Stainless Steel Handle | Steel Attachment

Steel Attachment

  • Range:Standard Parts
  • Category:Cam Levers
  • Group:Stainless Steel Handle
  • Style:Steel Attachment
Search on complete or part product code

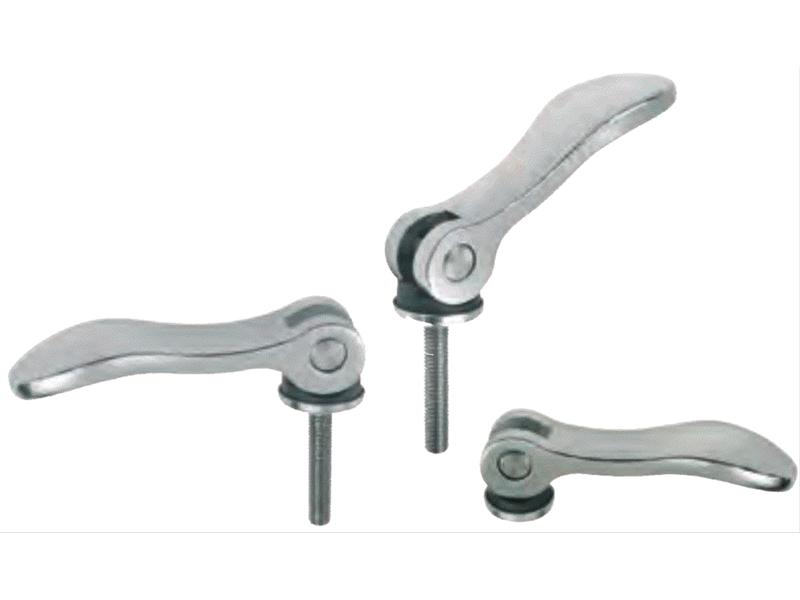

Steel Attachment
Steel Attachment

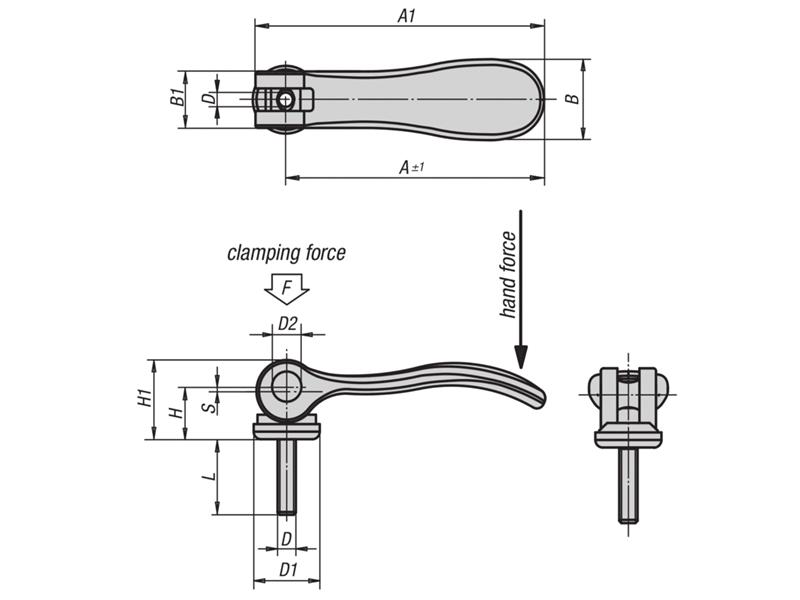

DrawingsPDF
Part No. Size D D1 D2 B B1 H H1 A A1 Clamping Force F (kN) Hand Force N Stroke S
K0788.1502205 1 M5 18.1 9 21.5 15 14.5 22 70.4 79.2 4 120 1.2 <span class="new_prod_buttons"><a href="options-for-k07881502205-steel-pr2201.aspx">CAD / BUY</a></span>
K0788.1502206 1 M6 18.1 9 21.5 15 14.5 22 70.4 79.2 4 120 1.2 <span class="new_prod_buttons"><a href="options-for-k07881502206-steel-pr2202.aspx">CAD / BUY</a></span>
K0788.2502208 2 M8 27.1 11 33.3 24 18 28.5 96 108 8 350 1.5 <span class="new_prod_buttons"><a href="options-for-k07882502208-steel-pr2203.aspx">CAD / BUY</a></span>
K0788.2502210 2 M10 27.1 11 33.3 24 18 28.5 96 108 8 350 1.5 <span class="new_prod_buttons"><a href="options-for-k07882502210-steel-pr2204.aspx">CAD / BUY</a></span>
