Axle Bracket B Series

  • Range: Wheels & Castors
  • Category:Axles & Axle Bracket Assemblies
  • Group:Axle Brackets
  • Style:Axle Bracket B Series
Search on complete or part product code

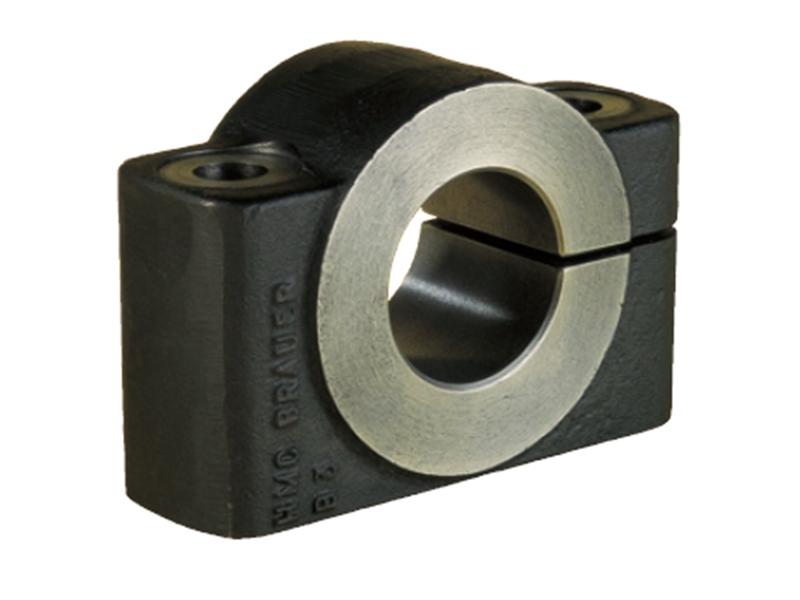

Axle Bracket B Series
Axle Bracket B Series

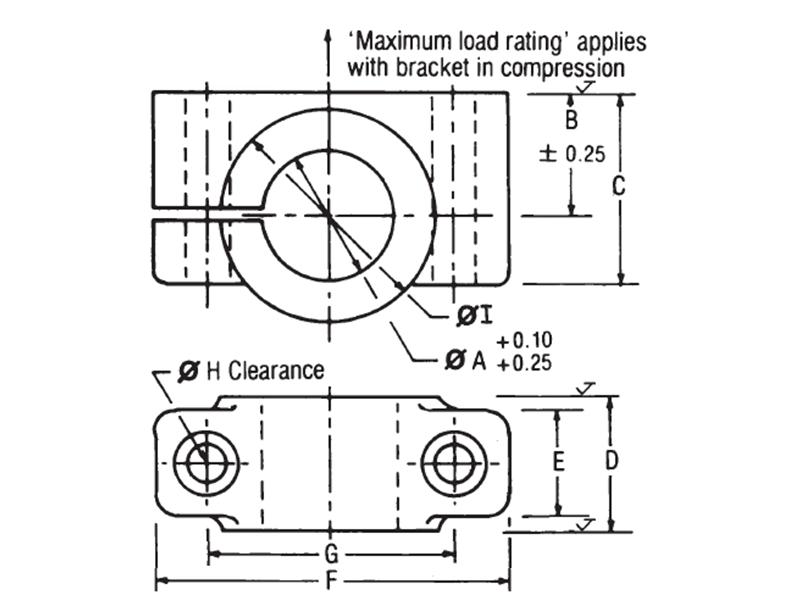

DrawingsPDF
Part No. A B C D E F G H I
Axle Bracket B1/25 25 35 55 40 30 105 70 12 60
Axle Bracket B1/30 30 35 55 40 30 105 70 12 60
Axle Bracket B1/35 35 35 55 40 30 105 70 12 60
Axle Bracket B1/40 40 35 55 40 30 105 70 12 60
Axle Bracket B2/45 45 45 70 50 40 130 90 16 80
Axle Bracket B2/50 50 45 70 50 40 130 90 16 80
Axle Bracket B3/60 60 60 95 65 55 170 120 20 110
Axle Bracket B3/70 70 60 95 65 55 170 120 20 110
Axle Bracket B4/75 75 75 115 80 70 210 150 24 140
Axle Bracket B4/85 85 75 115 80 70 210 150 24 140
