Home | Wheels & Castors | Jacking Castors | JWG (2500kg) | c/w Poly Tyred Wheel

c/w Poly Tyred Wheel

  • Range: Wheels & Castors
  • Category:Jacking Castors
  • Group:JWG (2500kg)
  • Style:c/w Poly Tyred Wheel
Search on complete or part product code

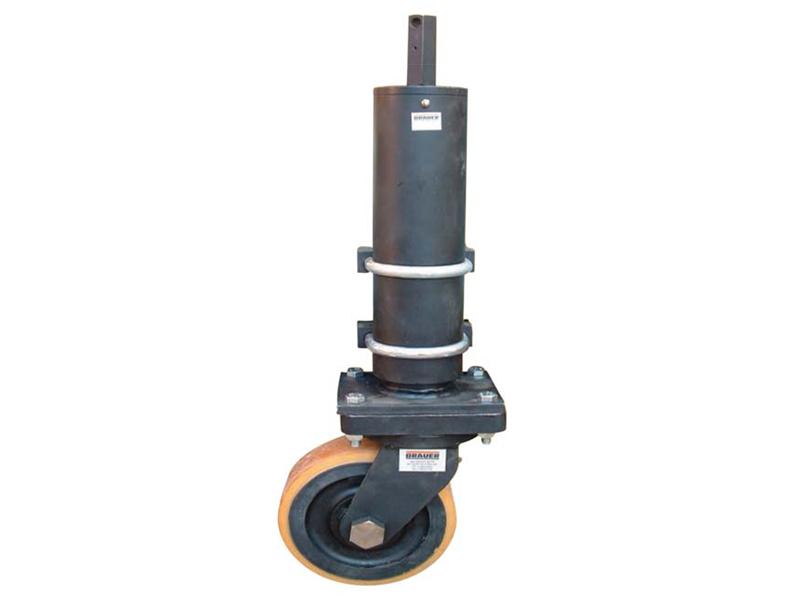

Brauer have developed a new 'JWG' Jacking Unit. This heavy duty Jacking unit is adaptable to many arduous environments and applications which is as a consequence of our in-house design team and manufacturing capability. Many options are available due to the integration of our 'WG' Series Castor into the design, giving unsurpassed flexibility to the market place. Availability and delivery are enhanced because we are aleading the leading UK manufacturer and control all aspects of the Jacking Unit's manufacture. Load ratings up to 2500kg per unit. Wheel options from 150mm to 300mm diameter. Swivel and fixed castor options available. Flat foot option for non castor applications also available. Approximate weight 35Kg.
c/w Poly Tyred Wheel
c/w Poly Tyred Wheel

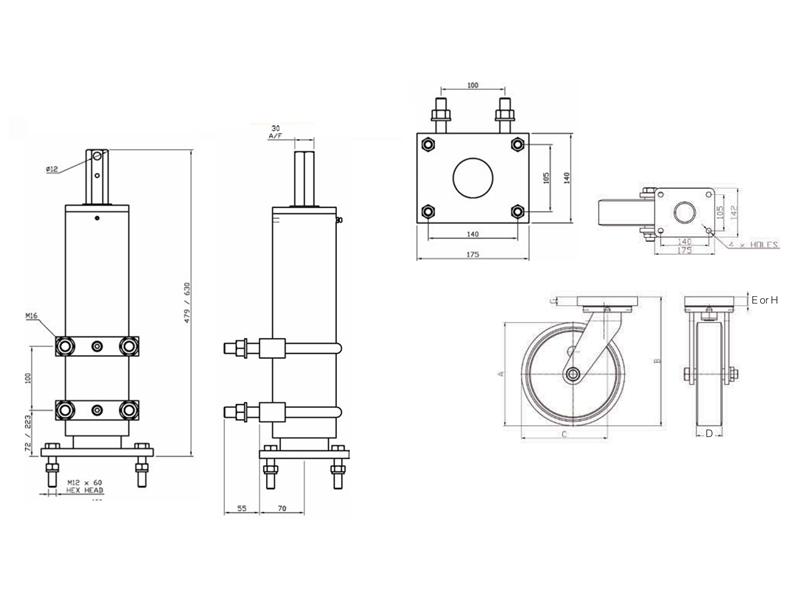

DrawingsPDF
Part No. Wheel Diameter Overall Castor Height Swivel Radius Tread Width Max Load Rating Wheel Bearing Type Approx. Weight
JWGS/H150/50TB 150 220 125 50 900kg Taper Roller 37kg
JWGS/H200/75TB 200 265 160 75 1750kg Taper Roller 48kg
JWGS/H250/70TB 250 310 200 70 2000kg Taper Roller 46kg
JWGS/H300/75TB 300 375 250 75 2300kg Taper Roller 50kg
JWGF/H150/50TB 150 220 0 50 900kg Taper Roller 37kg
JWGF/H200/75TB 200 265 0 75 1750kg Taper Roller 48kg
JWGF/H250/70TB 250 310 0 70 2000kg Taper Roller 46kg
JWGF/H300/75TB 300 375 0 75 2300kg Taper Roller 50kg
