Low Profile 'T' Handle

  • Range:Toggle Clamps
  • Category:Manual Toggle Clamps
  • Group:Vertical Toggle Clamps
  • Style:Low Profile 'T' Handle
Search on complete or part product code

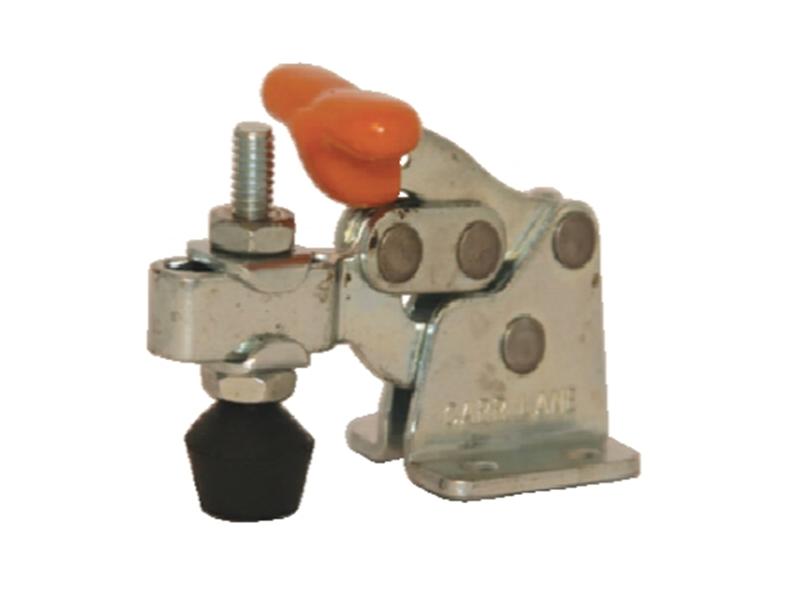

Strong, compact, clamp with excellent height clearance gained from the unique 'T' handle design. Adjustable spindle position within the clamp arm, to ensure variable spindle positions setting over working area.

Select product to view cad download options
Low Profile 'T' Handle
Low Profile 'T' Handle
DrawingsPDF

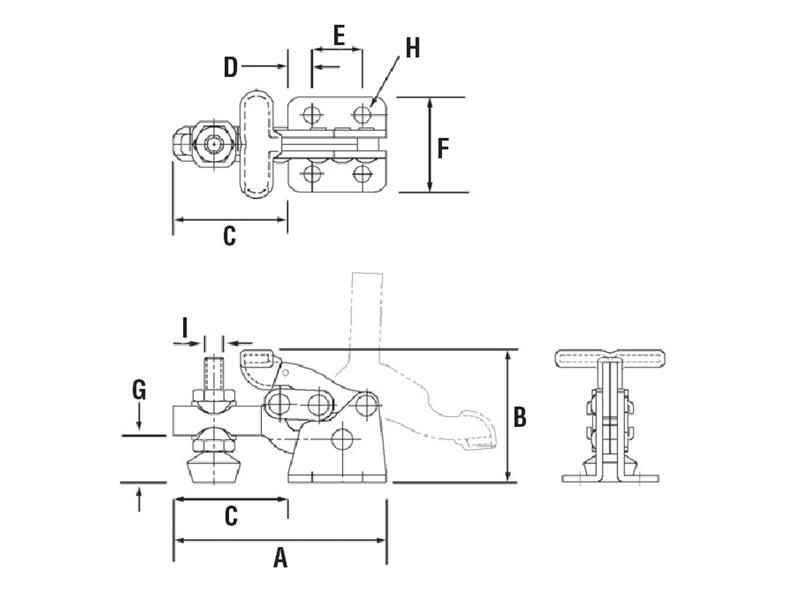

Part No. A B C D E F G I Holding Force Weight
V70/2BT 56.3 35 26.2 13.5 13.5 25.4 12.7 4.3 70daN 0.1Kg CAD / BUY
V70/2BTSS 56.3 35 26.2 13.5 13.5 25.4 12.7 4.3 70daN 0.1Kg CAD / BUY
