Double Flanged

Range: Wheels & Castors
Category:Heavy Duty Industrial Wheels
Group:Steel Wheels
Style:Double Flanged

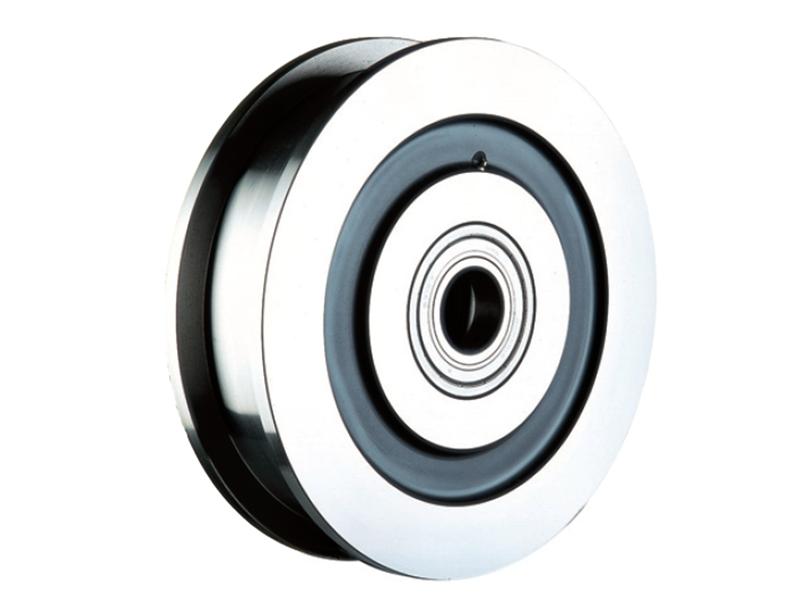

Heavy duty wheels and heavy duty rail wheels are synonymous with Brauer, using the very best high grade steels, to ensure safety and load performance over life times of the project. Brauer offers the widest choice available for diameter, load, bore preference and has the most experience in this field when assisting a customers own design needs.

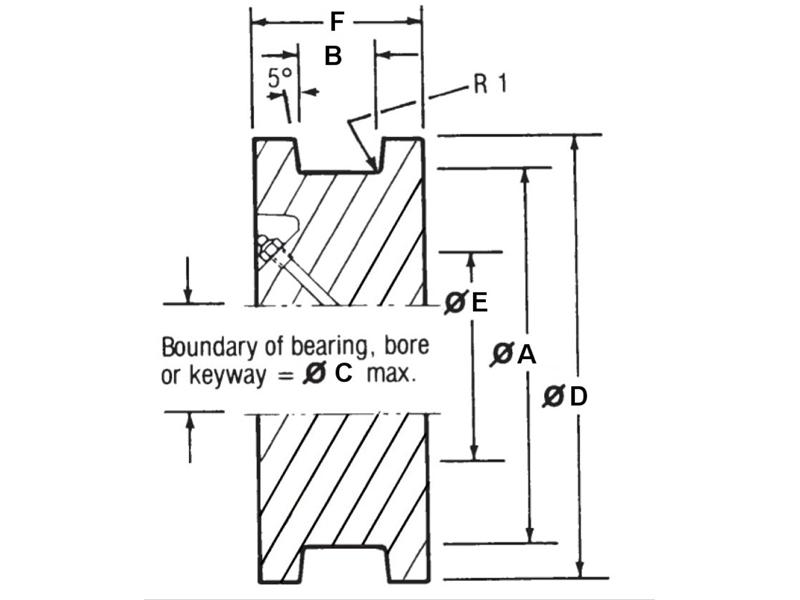

Part No.	A	B	C	D	E	F	Load Kg	Weight Kg
SDF75/35	75	35	50	100	-	60	1350	2.5	Show Variants
SDF100/35	100	35	75	125	-	60	1800	4	Show Variants
SDF150/50	150	50	100	190	-	80	3900	13	Show Variants
SDF200/50	200	50	150	240	-	90	5100	25	Show Variants
SDF225/50	225	50	150	270	-	100	5800	36	Show Variants
SDF225/60	225	60	150	270	-	100	7000	35	Show Variants
SDF250/60	250	60	125	295	178	100	7700	44	Show Variants
SDF300/55	300	55	125	345	178	100	8500	60	Show Variants
SDF300/65	300	65	125	345	178	100	10000	59	Show Variants
SDF350/60	350	60	150	395	202	110	10800	90	Show Variants
SDF350/75	350	75	150	395	202	110	13500	90	Show Variants
SDF450/70	450	70	150	495	200	125	16200	160	Show Variants
SDF450/80	450	80	150	495	200	125	18500	160	Show Variants
SDF600/100	600	100	150	660	250	150	30900	350	Show Variants
