Home | Wheels & Castors | Heavy Duty Industrial Wheels | Nylon Wheels | Double Flanged

Double Flanged

  • Range: Wheels & Castors
  • Category:Heavy Duty Industrial Wheels
  • Group:Nylon Wheels
  • Style:Double Flanged
Search on complete or part product code

Heavy duty wheels and heavy duty rail wheels are synonymous with Brauer, using the very best high grade special nylon materials, to ensure safety and load performance over life times of the project. Brauer offers the widest choice available for diameter, load, bore preference and has the most experience in this field when assisting a customers own design or standard rail wheel needs.

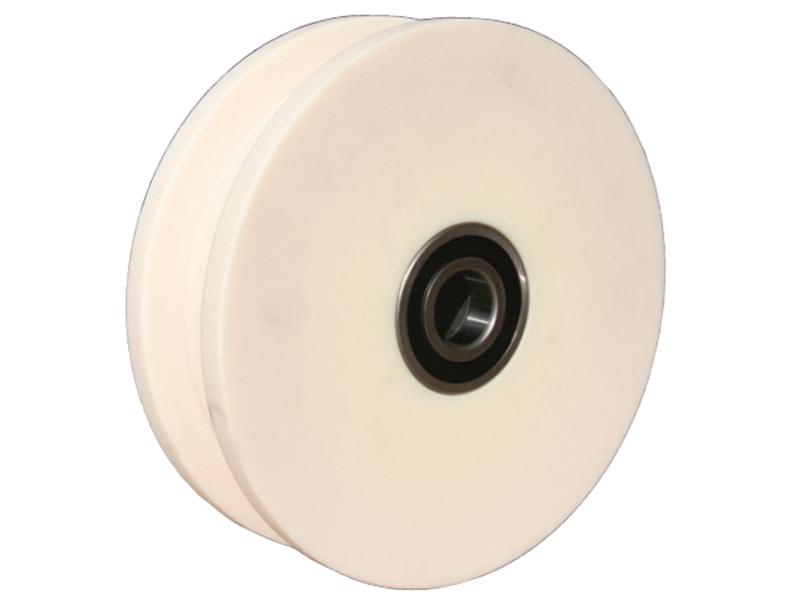

Double Flanged
Double Flanged

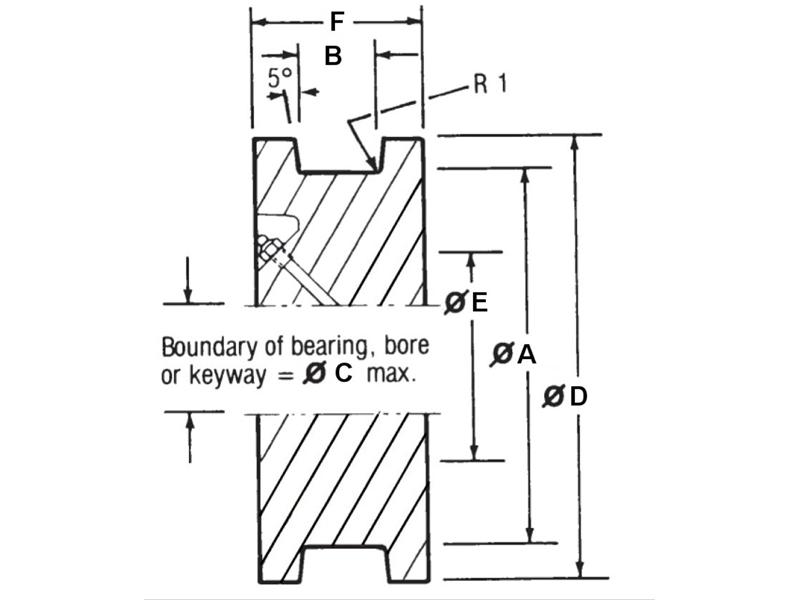

DrawingsPDF
Part No. A B C D E F Load Kg Weight Kg
NDF200/60 200 60 150 240 - 100 1960 4
NDF250/60 250 60 125 295 - 100 2450 5.5
NDF300/60 300 60 125 345 - 100 3530 8
NDF350/60 350 60 150 395 - 110 4120 11
NDF400/60 400 60 150 450 - 110 4770 14

Other bore sizes and types available on request, including imperial
