Home | Wheels & Castors | Heavy Duty Industrial Wheels | Nylon Polyamide 6 (cast) | Flat Tread

Flat Tread

  • Range: Wheels & Castors
  • Category:Heavy Duty Industrial Wheels
  • Group:Nylon Polyamide 6 (cast)
  • Style:Flat Tread
Search on complete or part product code

Colour: Black

Main characteristics:
-Tough and hard
-UV and weathering resistant
-Good sliding properties even in dry running conditions
-Resistant to many oils, greases, diesel, petrol
-Not electrically insulating
-Increased surface hardness

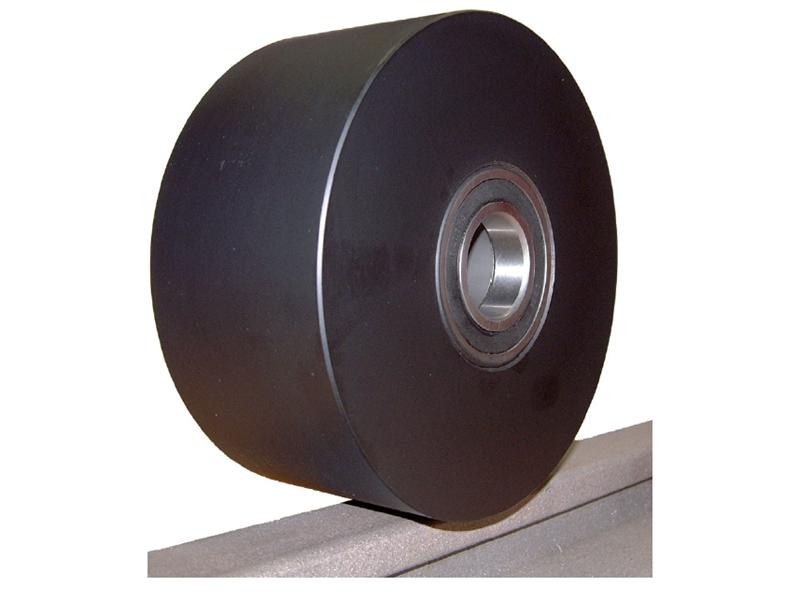

Flat Tread
Flat Tread

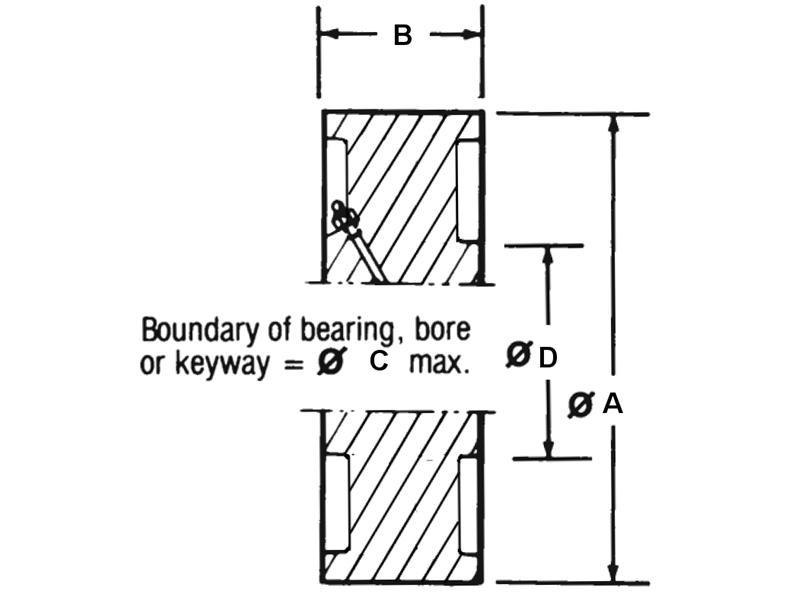

DrawingsPDF
Part No. A B C D Max Load Kg Weight Kg
PFT200/60 200 60 150 - 2350 2 Show Variants
PFT250/60 250 60 125 - 2950 3.2 Show Variants
PFT250/75 250 75 125 - 3680 4 Show Variants
PFT250/100 250 100 125 - 4900 5.5 Show Variants
PFT300/100 300 100 125 - 5880 8 Show Variants
PFT350/100 350 100 150 - 6870 10.5 Show Variants
PFT400/100 400 100 150 - 7850 14 Show Variants

Other bore sizes and types available on request, including imperial
