Home | Standard Parts | Locking Pins, Index Plungers | Form C | Form C

Form C

  • Range:Standard Parts
  • Category:Locking Pins, Index Plungers
  • Group:Form C
  • Style:Form C
Search on complete or part product code

With Locking Slot
Without Locking Nut
Form C
Form C

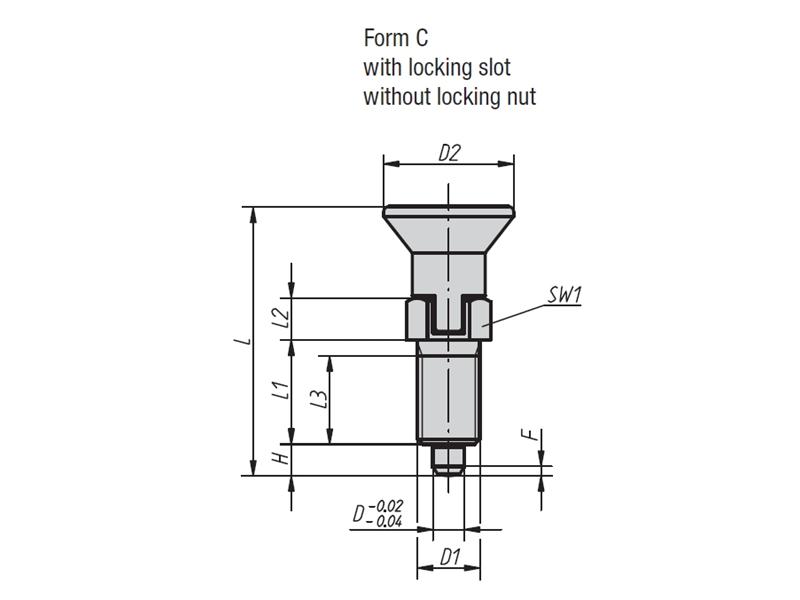

DrawingsPDF
Part No. D D1 D2 L L1 L2 L3 H SW1 SW2 F1 F2
45105C 5 M10x1 21 50 17 10 15 5 13 17 5 12 Show Options
45206C 6 M12x1.5 25 59 20 11 17 6 14 19 6 14 Show Options
45308C 8 M16x1.5 33 77 26 13 23 8 19 24 15 35 Show Options
45410C 10 M20x1.5 33 83 28 15 25 10 22 30 20 40 Show Options
