Horizontal Latch Clamps

  • Range:Toggle Clamps
  • Category:Manual Toggle Clamps
  • Group:Toggle Latches/Latch Clamps
  • Style:Horizontal Latch Clamps
Search on complete or part product code

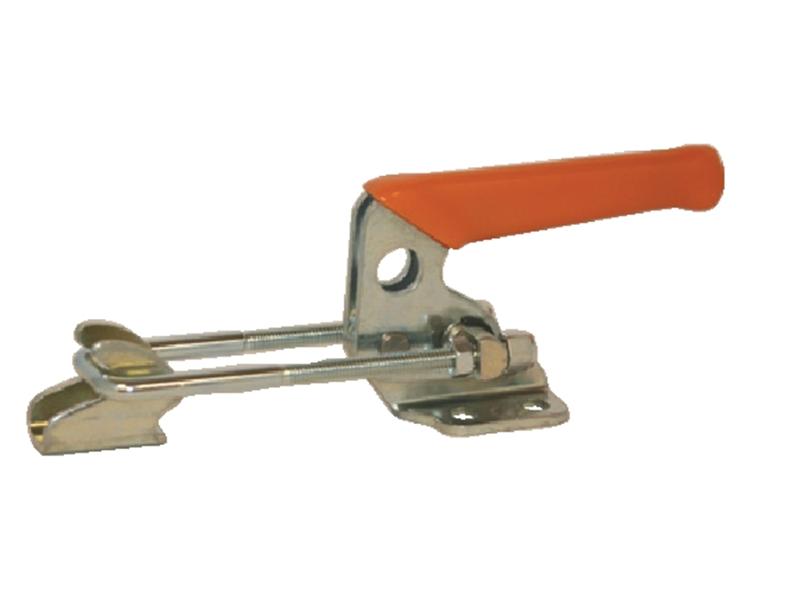

Horizontal Latch Clamps

Select product to view cad download options
Horizontal Latch Clamps
Horizontal Latch Clamps

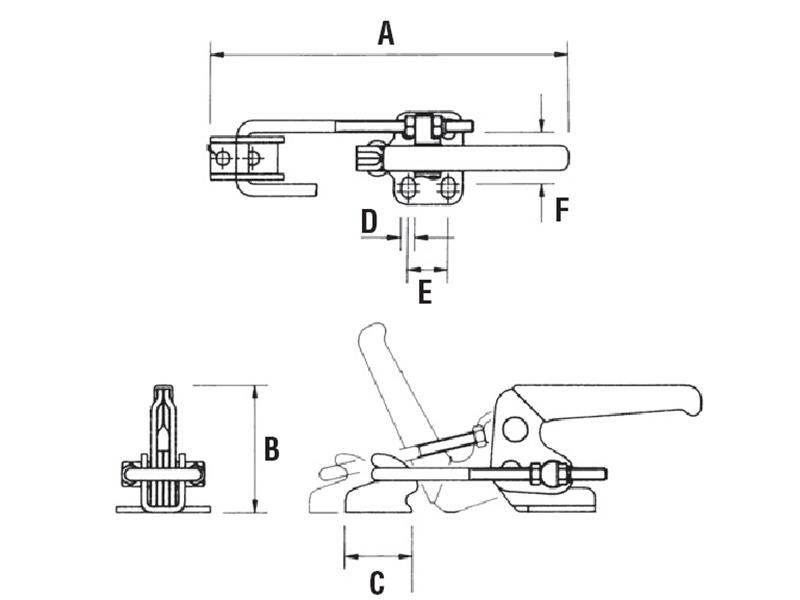

DrawingsPDF
Part No. A B C D E F Holding Force Weight
LU200H 135 42 23 5.2 13 19 200daN 0.05Kg CAD / BUY
LU400H 185 63 32 6.5 19 25 400daN 0.25Kg CAD / BUY
LU700H 250 84 40 8.5 32 36 700daN 0.70Kg CAD / BUY
LU2000H 320 115 65 10.3 N/A 50 2000daN 1.40Kg CAD / BUY
LU4000H 395 132 78 12.4 N/A 56 4000daN 2.60Kg CAD / BUY
LU323 110 30 20 4.3 15.9 19.1 170daN 0.16Kg CAD / BUY
LU331 170 44.4 25.4 6.3 19 31.8 320daN 0.23Kg CAD / BUY
LU341 243 75 38.1 8.5 41.3 38.1 900daN 0.68Kg CAD / BUY
LU375 280 104 57.2 10.3 57.2 57.2 1800daN 1.80Kg CAD / BUY
