Home | Standard Parts | Spring Plungers | Recess and Ball | Long-Lok Secured

Long-Lok Secured

  • Range:Standard Parts
  • Category:Spring Plungers
  • Group:Recess and Ball
  • Style:Long-Lok Secured
Search on complete or part product code

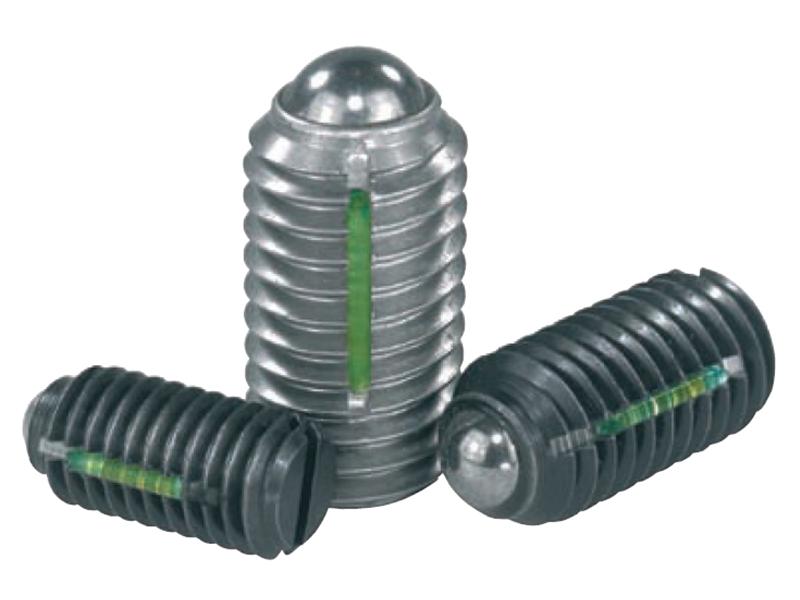

Long-Lok Secured
Long-Lok Secured

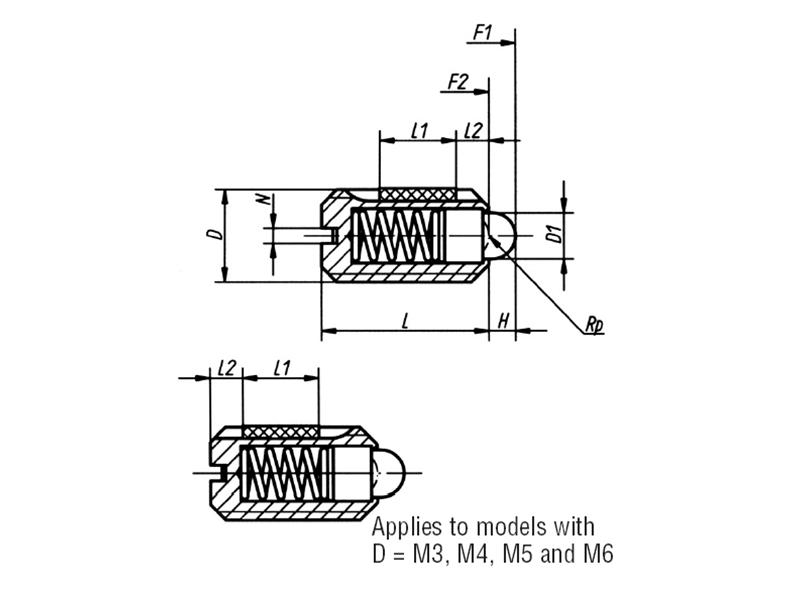

DrawingsPDF
Part No. D D1 L L1 H N F1 F2 Weight
1603058 M3 1.5 7 4 0.5 0.4 1.5 3 0.2 Show Options
1604058 M4 2.5 9 5 0.8 0.6 4 10 0.6 Show Options
1605058 M5 3 12 6 0.9 0.8 6 11 0.9 Show Options
1606058 M6 3.5 14 7 1 1 9 13 1.5 Show Options
1608058 M8 5 16 8 1.5 1.2 15 30 3.5 Show Options
1610058 M10 6 19 9 2 1.6 20 35 7 Show Options
1612058 M12 8 22 10 2.5 2 30 55 10 Show Options
1616058 M16 10 24 14 3.5 2.5 65 125 24 Show Options
