Home | Standard Parts | Spring Plungers | Hexagon Socket | Plastic Pressure Pin

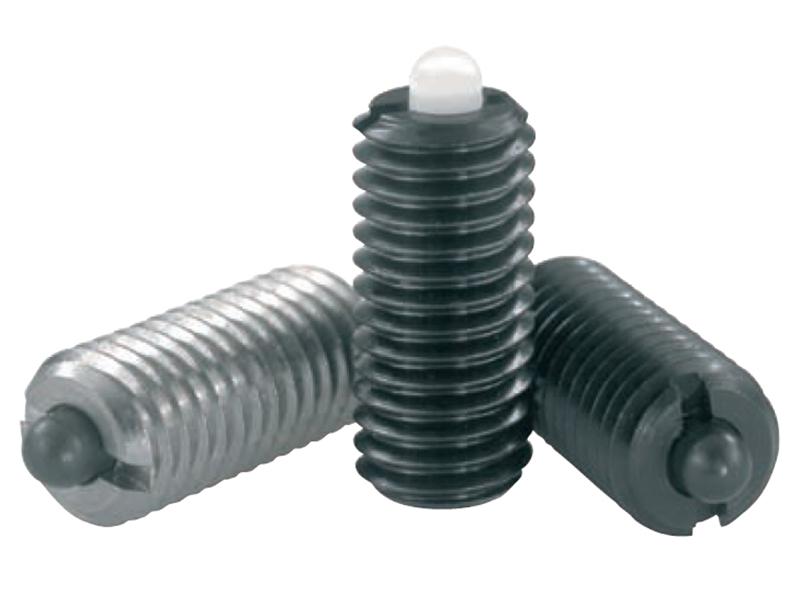

Plastic Pressure Pin

  • Range:Standard Parts
  • Category:Spring Plungers
  • Group:Hexagon Socket
  • Style:Plastic Pressure Pin
Search on complete or part product code
Plastic Pressure Pin
Plastic Pressure Pin
DrawingsPDF
Part No. D D1 L H T T1 N S F1 F2 Weight
1604002 M4 1.5 15 1.5 2 0.6 0.6 1.3 5 1.3 0.8 Show Options
1605002 M5 2.4 18 2.3 2 0.8 0.8 1.5 6 1.5 1.3 Show Options
1606002 M6 2.7 20 2.5 2.5 1 1 2 7 2 2.5 Show Options
1608002 M8 3.5 22 3 3 1.4 1.2 2.5 9 2.5 6 Show Options
1610002 M10 4 22 3 3.5 1.4 1.6 3 9 3 9 Show Options
1612002 M12 6 28 4 5 2 2 4 10 4 16 Show Options
1616002 M16 7.5 32 5 6 2.5 2.5 5 45 5 35 Show Options
