Home | Standard Parts | Spring Plungers | Hexagon Socket/Long-Lok Secured | Plastic Pressure Pin

Plastic Pressure Pin

  • Range:Standard Parts
  • Category:Spring Plungers
  • Group:Hexagon Socket/Long-Lok Secured
  • Style:Plastic Pressure Pin
Search on complete or part product code

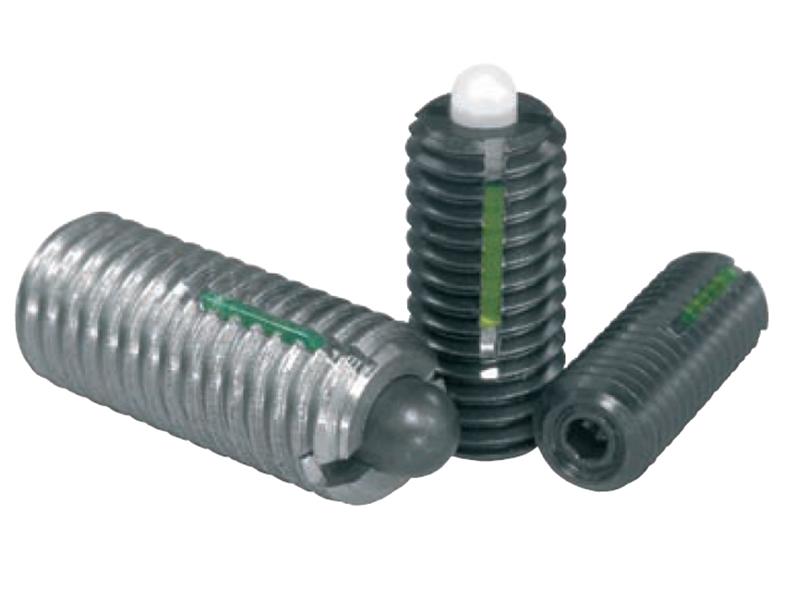

Plastic Pressure Pin
Plastic Pressure Pin

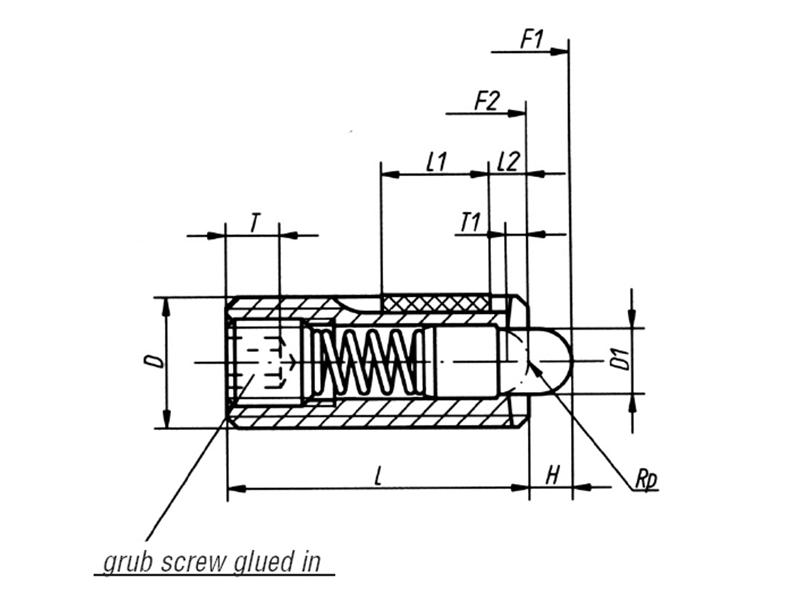

DrawingsPDF
Part No. D D1 L L1 H T T1 N S F1 F2 Weight
1605052 M5 2.4 18 7 2.3 2 0.8 0.8 1.5 6 20 1.3 Show Options
1606052 M6 2.7 20 7 2.5 2.5 1 1 2 7 20 2.5 Show Options
1608052 M8 3.5 22 8 3 3 1.2 1.2 2.5 9 35 6 Show Options
1610052 M10 4 22 9 3 3.5 1.6 1.6 3 9 35 9 Show Options
1612052 M12 6 28 10 4 5 2 2 4 10 55 16 Show Options
1616052 M16 7.5 32 14 5 6 2.5 2.5 5 45 100 35 Show Options
