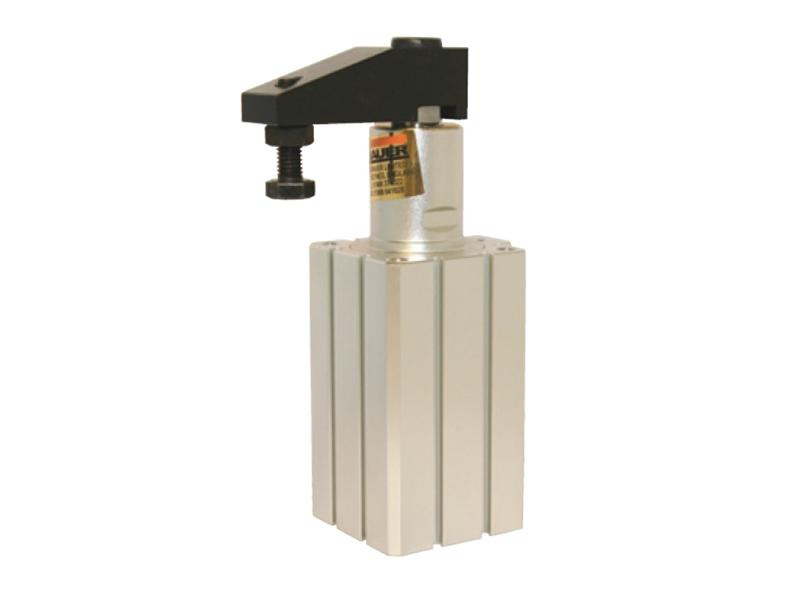

Pneumatic Swing Clamps

  • Range:Toggle Clamps
  • Category:Pneumatic Toggle Clamps
  • Group:Pneumatic Swing Clamps
  • Style:Pneumatic Swing Clamps
Search on complete or part product code
Select product to view cad download options
Pneumatic Swing Clamps
Pneumatic Swing Clamps
DrawingsPDF
Part No. A B C D E F G I Holding Force
PNS25-10A 105.5 40 32.5 28 16 73 2xM5 M6x1.0 20daN
PNS25-10C 105.5 40 32.5 28 16 73 2xM5 M6x1.0 20daN
PNS32-10A 127 45 45.5 34 22 81.5 2xG1/8 M8x1.25 60daN
PNS32-10C 127 45 45.5 34 22 81.5 2xG1/8 M8x1.25 60daN
PNS40-20A 148 52 63 40 22 85 2xG1/8 M8x1.25 105daN
PNS40-20C 148 52 63 40 22 85 2xG1/8 M8x1.25 105daN
PNS50-20A 169.5 64 73 50 22 96.5 2xG1/4 M10X1.5 160daN CAD / BUY
PNS50-20C 169.5 64 73 50 22 96.5 2xG1/4 M10X1.5 160daN
PNS63-20A 172.5 77 72.5 60 22 100 2xG1/4 M10X1.5 280daN
PNS63-20C 172.5 77 72.5 60 22 100 2xG1/4 M10X1.5 280daN
