Home | Toggle Clamps | Pneumatic Toggle Clamps | Pneumatic Vertical Toggle Clamps | Pneumatic Vertical Toggle

Pneumatic Vertical Toggle

  • Range:Toggle Clamps
  • Category:Pneumatic Toggle Clamps
  • Group:Pneumatic Vertical Toggle Clamps
  • Style:Pneumatic Vertical Toggle
Search on complete or part product code
Select product to view cad download options

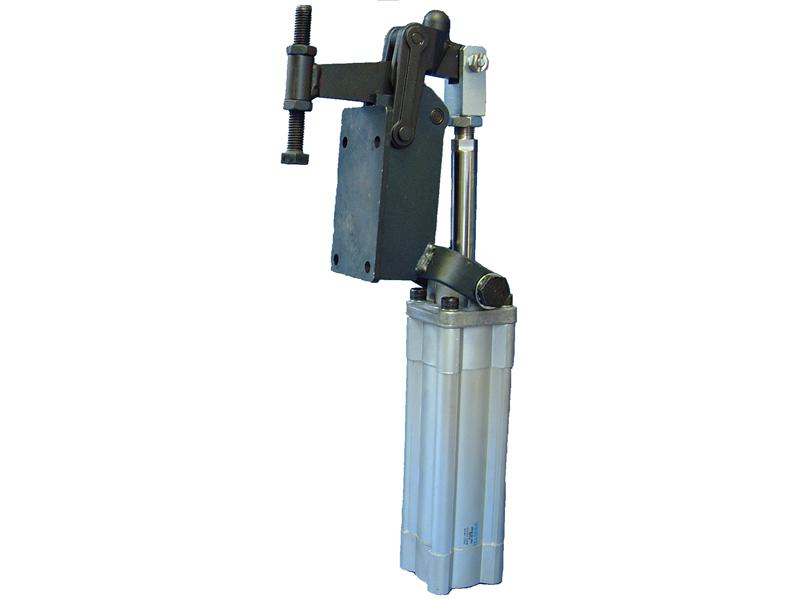

Pneumatic Vertical Toggle
Pneumatic Vertical Toggle

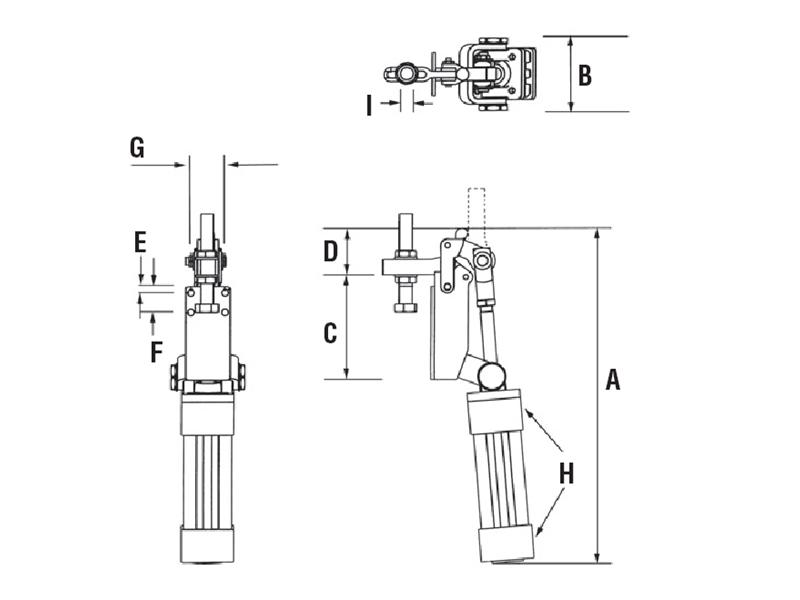

DrawingsPDF
Part No. A B C D E F G I Nominal Holding Force Weight (kg)
VA700CX 437 87 123 75 25 85 50 M12x100 700daN 4.50Kg CAD / BUY
VA1200CX 486 87 146 85 100 60 60 M12x100 1200daN 5.75Kg CAD / BUY
VA2400CX 565 87 143 110 100 75 75 M16x150 2400daN 8.65Kg CAD / BUY
