Polyurethane Centre With Polyurethane Tyre

  • Range: Wheels & Castors
  • Category:Castors
  • Group:E Series (380kg)
  • Style:Polyurethane Centre With Polyurethane Tyre
Search on complete or part product code

The E Series Light duty castor range consists of both swivel and fixed castor bracket options. The load capacities, range from 100kg to 380kg.

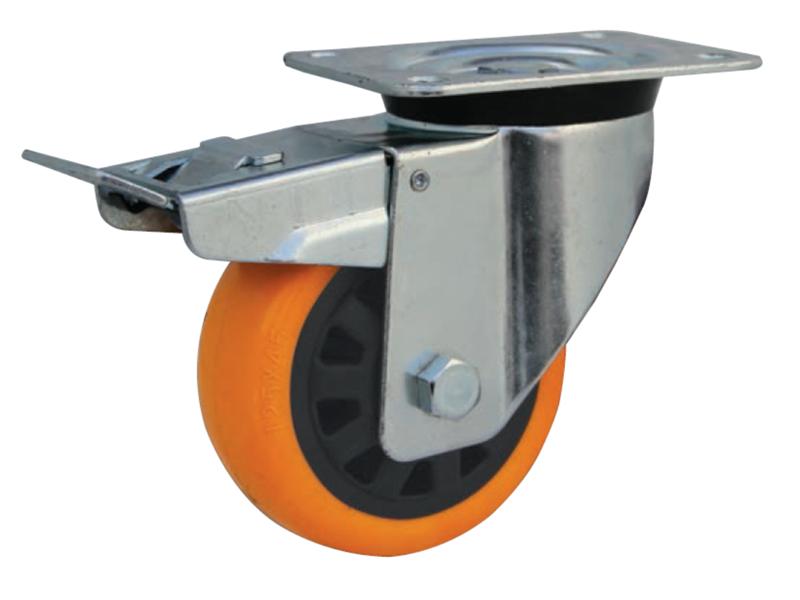

Polyurethane Centre With Polyurethane Tyre
Polyurethane Centre With Polyurethane Tyre

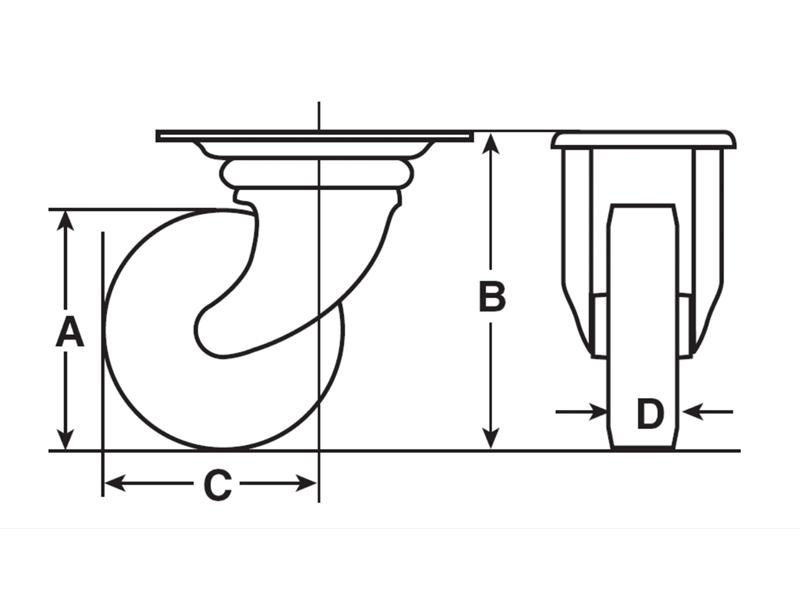

DrawingsPDF
Part No. A B C D Max Load Rating Wheel Bearing Type Approx Weight
ES/PP125/45BJ/L 125 160 117 45 300kg Ball Journal 2.4kg
ES/PP150/45BJ/L 150 190 130 45 340kg Ball Journal 2.7kg
ES/PP200/45BJ/L 200 240 155 45 380kg Ball Journal 3.3kg
EF/PP125/45BJ 125 160 0 45 300kg Ball Journal 1.5kg
EF/PP150/45BJ 150 190 0 45 340kg Ball Journal 1.8kg
EF/PP200/45BJ 200 240 0 45 380kg Ball Journal 2.4kg

Various wheel options available
