Home | Wheels & Castors | Castors | HQZ Series (7300kg) | Polyurethane P-O-B Vulkollan Tyre

Polyurethane P-O-B Vulkollan Tyre

  • Range: Wheels & Castors
  • Category:Castors
  • Group:HQZ Series (7300kg)
  • Style:Polyurethane P-O-B Vulkollan Tyre
Search on complete or part product code

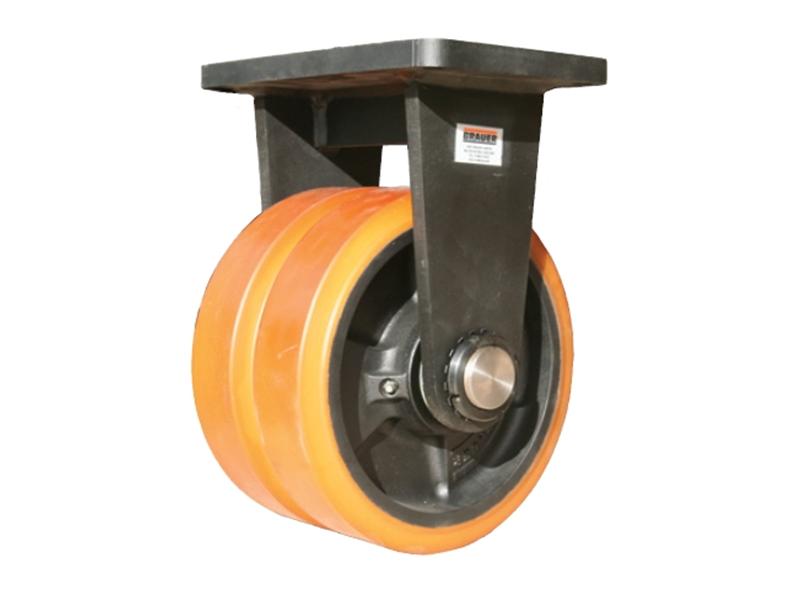

Heavy duty industrial castor, fitted with two special Brauer Vulkollan Polyurethane 380mm diameter by 100mm wide, P-O-B (press-on-band) wheels.

The HQZ heavy duty industrial swivel castor has a load rating of 7300kg, the load is limited by the wheels/bearings to 7200kg. For higher loads consider using different wheels/bearings.

The HQZ heavy duty series castors have directional lock fitted as standard.

Polyurethane P-O-B Vulkollan Tyre
Polyurethane P-O-B Vulkollan Tyre

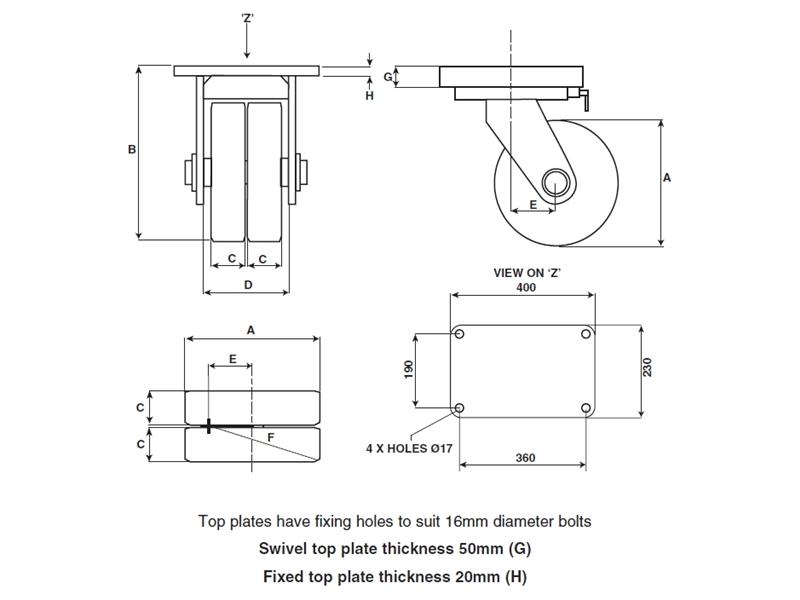

DrawingsPDF
Part No. A B C D E F Load Rating Fixed/Swivel
HQZS/PH380/100TB 380 515 100 240 125 331 7200kg Swivel
HQZF/PH380/100TB 380 515 100 240 7200kg Fixed

Various wheel options available
