Home | Wheels & Castors | Castors | QZ Series (4200kg) | Polyurethane Vulkollan Tyre

Polyurethane Vulkollan Tyre

  • Range: Wheels & Castors
  • Category:Castors
  • Group:QZ Series (4200kg)
  • Style:Polyurethane Vulkollan Tyre
Search on complete or part product code

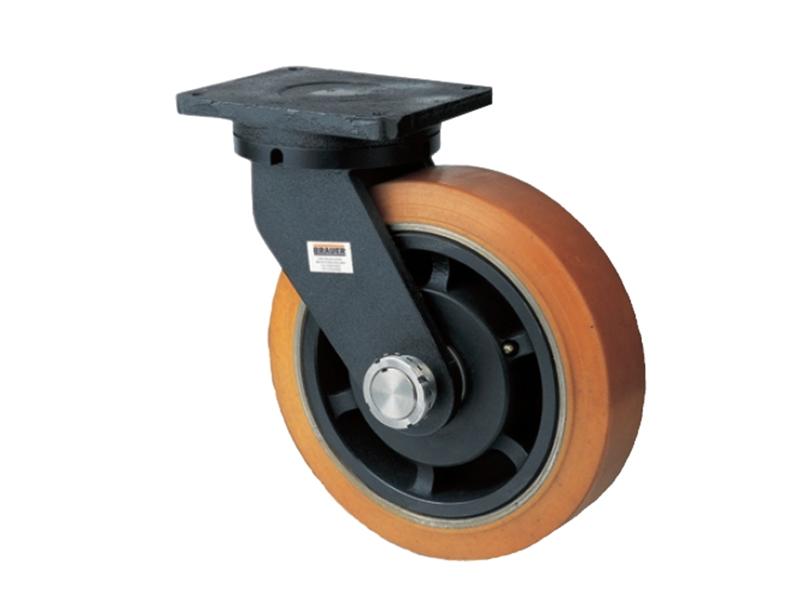

The QZ range of heavy duty industrial castors have load carrying capacities up to 4200kg and can be fitted with wheel diameters to 380mm using Vulkollan 'Heavithane' polyurethane wheels or any steel flat tread wheel.

The QZ range of heavy duty castors are available with individual wheel locks (W) and individual swivel locks (D) if either or both are required simply add "D" or "W" as suffix's to the part numbers below.

Polyurethane Vulkollan Tyre
Polyurethane Vulkollan Tyre

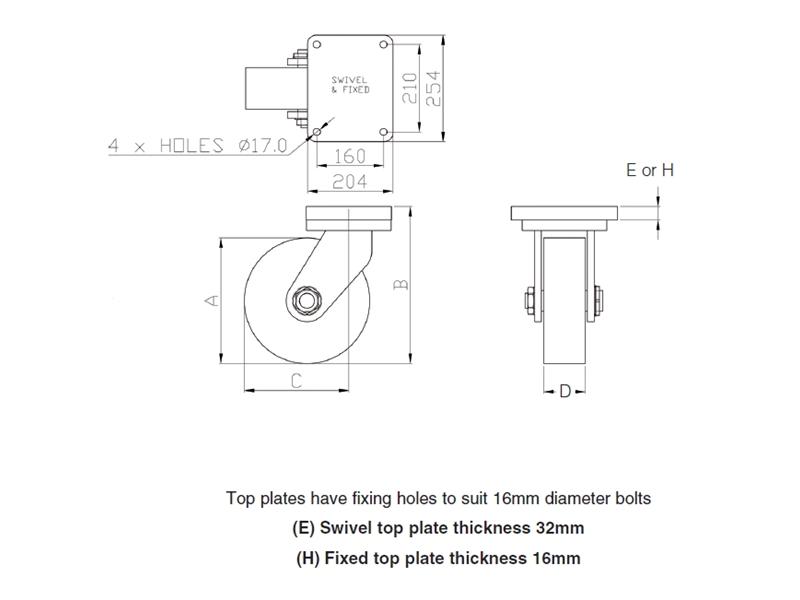

DrawingsPDF
Part No. A B C D Load Rating Fixed
QZS/H300/100TB 300 375 250 100 3100kg Swivel
QZS/H350/100TB 350 435 300 100 3600kg Swivel
QZF/H300/100TB 300 375 100 3100kg Fixed
QZF/H350/100TB 350 435 100 3600kg Fixed

Various wheel options available
