Recess and Ball

  • Range:Standard Parts
  • Category:Spring Plungers
  • Group:Recess and Ball
  • Style:Recess and Ball
Search on complete or part product code

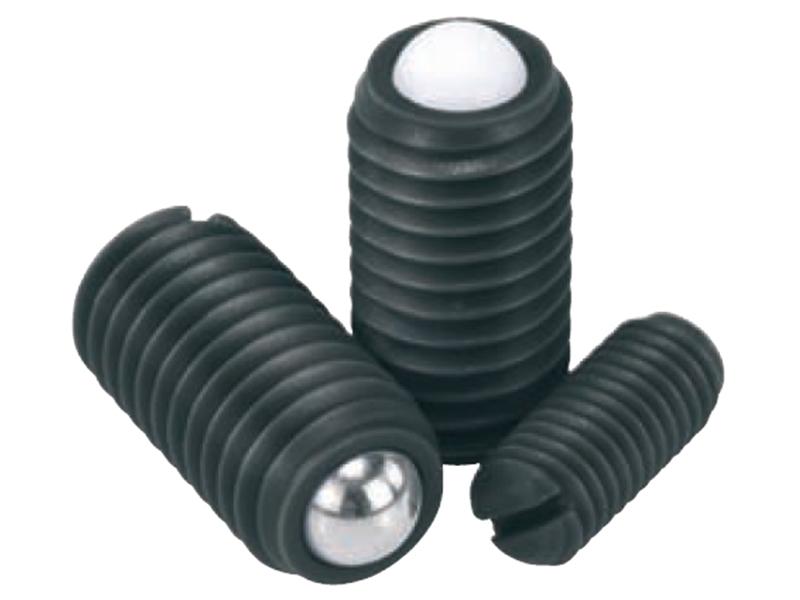

Recess and Ball
Recess and Ball

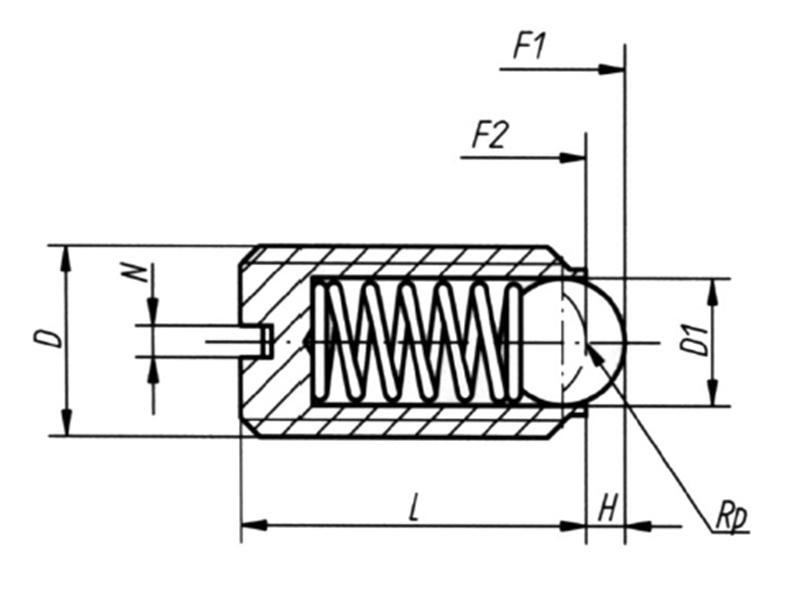

DrawingsPDF
Part No. D D1 L H N F1 F2 Weight
1603008 M3 1.5 7 0.5 0.4 1.5 3 0.2 Show Options
1604008 M4 2.5 9 0.8 0.6 4 10 0.6 Show Options
1605008 M5 3 12 0.9 0.8 6 11 0.9 Show Options
1606008 M6 3.5 14 1 1 9 13 1.5 Show Options
1608008 M8 5 16 1.5 1.2 15 30 3.5 Show Options
1610008 M10 6 19 2 1.6 20 35 7 Show Options
1612008 M12 8 22 2.5 2 30 55 10 Show Options
1616008 M16 10 24 3.5 2.5 65 125 24 Show Options
1620008 M20 12 30 4.5 2.5 80 160 44.3 Show Options
