Home | Standard Parts | Hoist Rings & Eyebolts | Hoist Rings | Side Pull 2000 Style

Side Pull 2000 Style

  • Range:Standard Parts
  • Category:Hoist Rings & Eyebolts
  • Group:Hoist Rings
  • Style:Side Pull 2000 Style
Search on complete or part product code

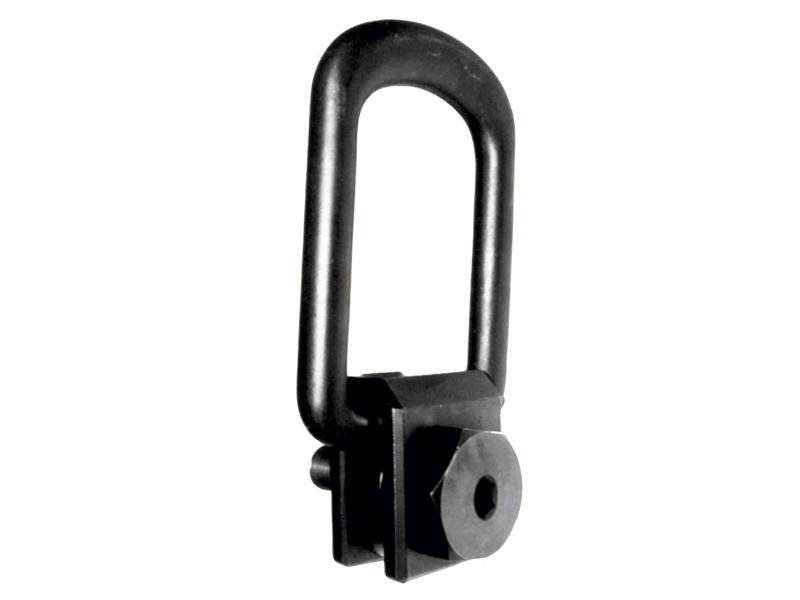

Side Pull 2000 Style
Side Pull 2000 Style

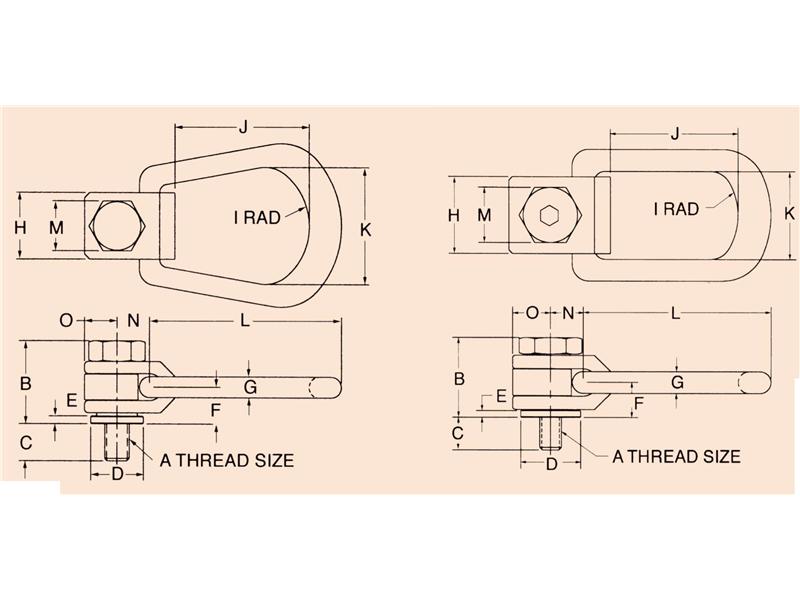

DrawingsPDF
Part No. A B C D G H I J K L M Hex Size Load Capacity
47581 M8x1.25 33 16 21 8 25 25 52 44 76 19 - 325
47582 M10x1.5 33 20 21 8 25 25 52 44 76 19 - 500
47583 M12x1.75 48 24 35 13 44 38 75 51 110 32 6 725
47584 M16x2.0 48 32 35 13 44 38 75 51 110 32 8 1400
47585 M20x2.5 59 40 48 16 57 51 102 67 145 44 10 2290
47586 M24x3.0 59 48 48 16 57 51 102 67 145 44 12 3050
47587 M30x3.5 90 60 83 27 95 76 176 111 265 76 19 4850
47588 M36x4.0 90 72 83 27 95 76 196 111 265 76 19 7500
47589 M48x5.0 90 96 83 27 95 76 196 111 265 76 19 10000
