Home | Wheels & Castors | Heavy Duty Industrial Wheels | Steel Wheels | Single Flanged

Single Flanged

  • Range: Wheels & Castors
  • Category:Heavy Duty Industrial Wheels
  • Group:Steel Wheels
  • Style:Single Flanged
Search on complete or part product code

Heavy duty wheels and rail wheels are synonymous with Brauer. Using the very best high grade steels and offering a wide variety of diameters and load capabilities puts Brauer firmly at the top when it comes to ensuring safety and long working life of industrial steel wheels. Brauer can also work with the customer or designer to quote on any bespoke wheel should the exact need not be found from our standard range.

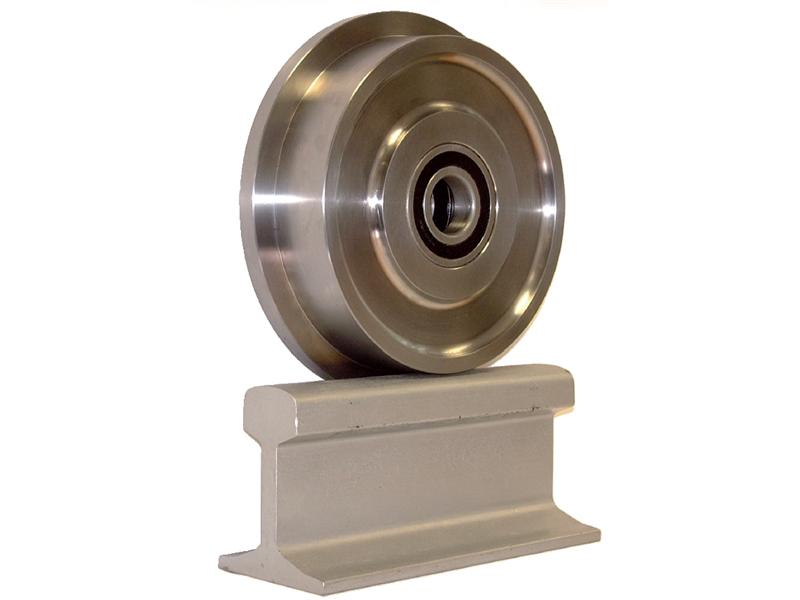

Single Flanged
Single Flanged

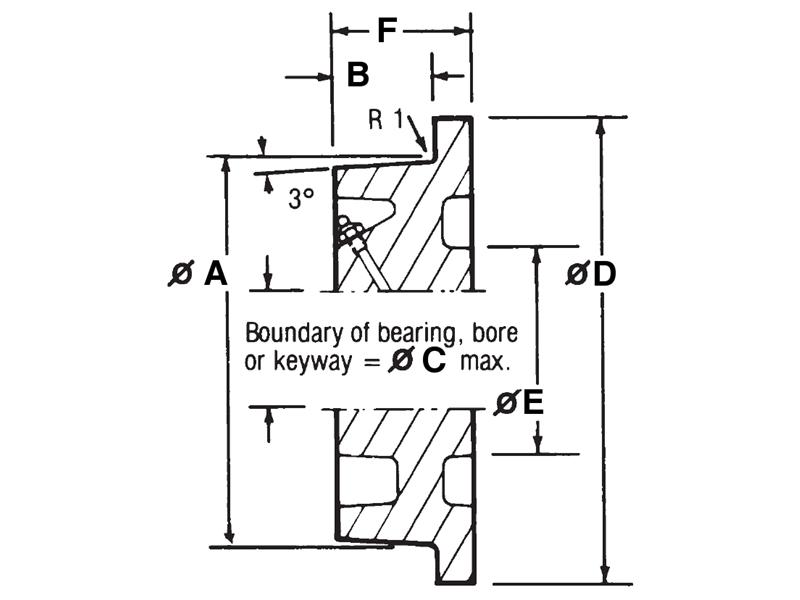

DrawingsPDFCAD Download
Part No. A B C D E F Load Kg Weight Kg
SSF75/25 75 25 50 100 - 37 975 1.4
SSF100/25 100 25 75 125 - 37 1300 2.5
SSF150/40 150 40 100 190 - 55 3100 8.5
SSF200/55 200 55 75 240 100 70 5700 18
SSF250/55 250 55 100 290 150 70 7100 29
SSF300/60 300 60 125 345 165 80 9300 45
SSF350/60 350 60 125 395 165 80 10800 60
SSF400/70 400 70 130 450 180 100 14400 100
SSF450/95 450 95 150 495 200 125 22000 150
SSF600/100 600 100 150 660 250 130 30900 280

Other bore sizes and types available on request, including imperial
