Single Flanged

  • Range: Wheels & Castors
  • Category:Heavy Duty Industrial Wheels
  • Group:Nylon Wheels
  • Style:Single Flanged
Search on complete or part product code

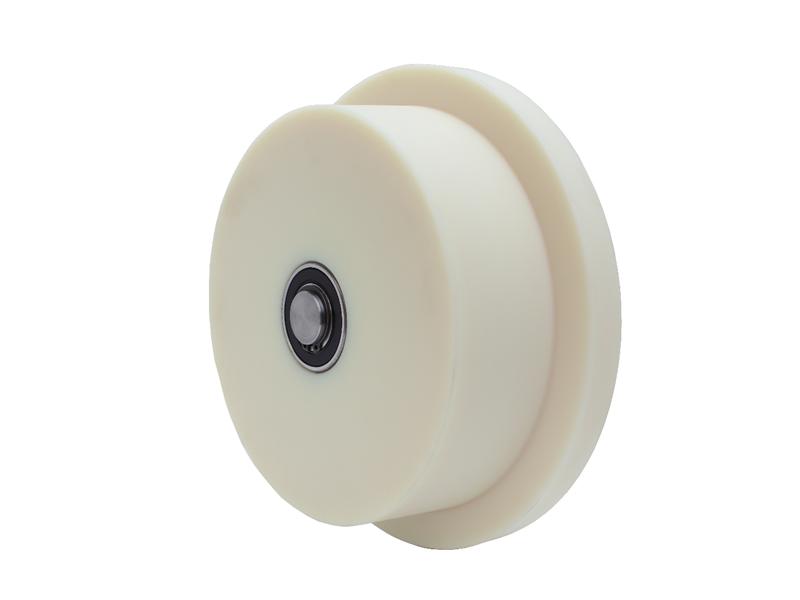

Single Flanged
Single Flanged

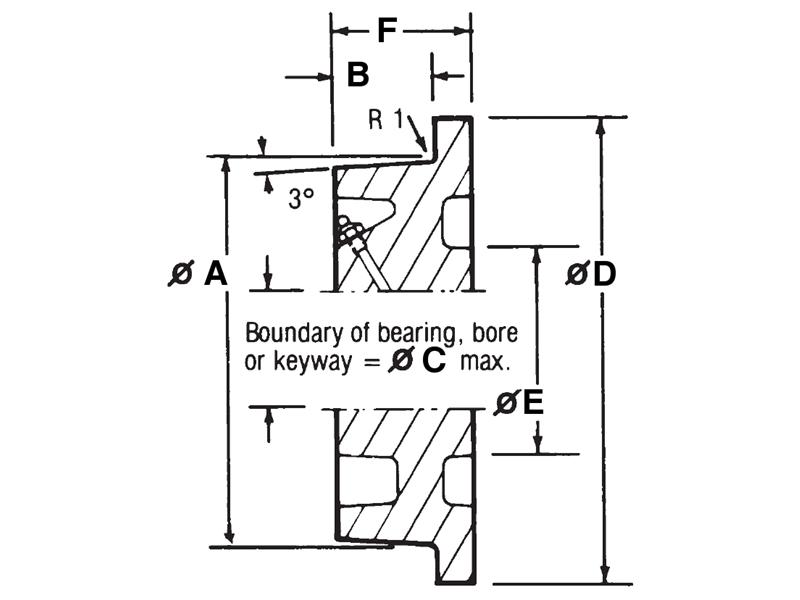

DrawingsPDF
Part No. A B C D E F Load Kg Weight Kg
NSF200/55 200 55 75 240 - 70 1760 3.3 Show Variants
NSF250/55 250 55 100 290 - 70 2200 5.5 Show Variants
NSF300/60 300 60 125 345 - 80 3500 7 Show Variants
NSF350/60 350 60 125 395 - 80 4100 9 Show Variants
NSF400/70 400 70 130 450 - 100 5000 12 Show Variants

Other bore sizes and types available on request, including imperial
