Home | Wheels & Castors | Heavy Duty Industrial Wheels | Nylon Polyamide 6 (cast) | Single Flanged

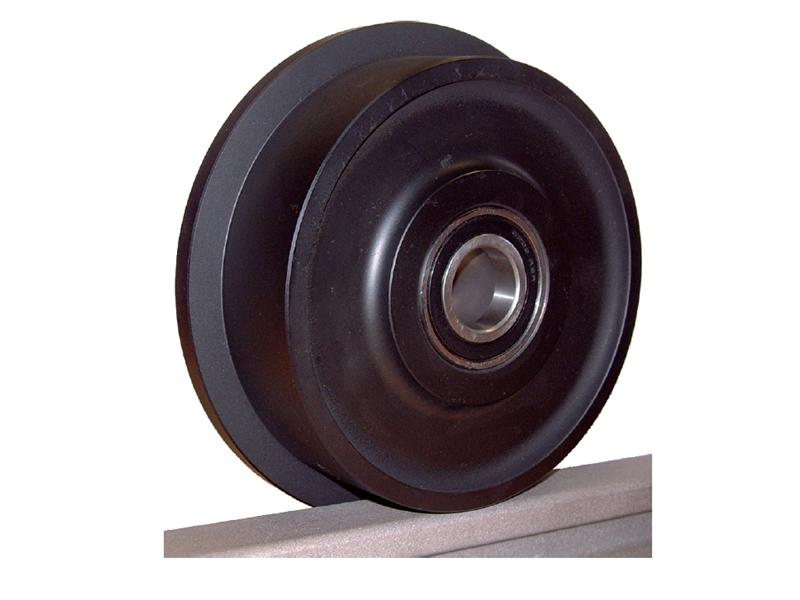

Single Flanged

  • Range: Wheels & Castors
  • Category:Heavy Duty Industrial Wheels
  • Group:Nylon Polyamide 6 (cast)
  • Style:Single Flanged
Search on complete or part product code

Colour: Black

Main characteristics:
-Tough and hard
-UV and weathering resistant
-Good sliding properties even in dry running conditions
-Resistant to many oils, greases, diesel, petrol
-Not electrically insulating
-Increased surface hardness
Single Flanged
Single Flanged

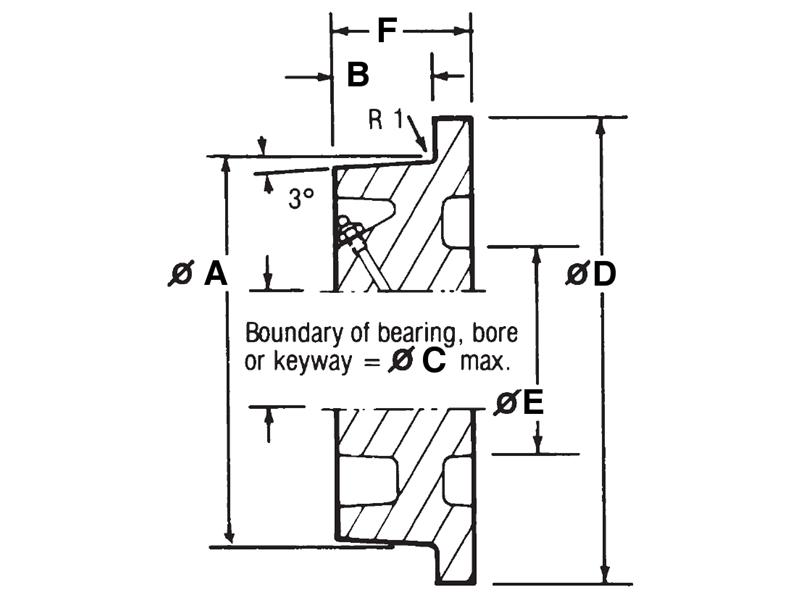

DrawingsPDF
Part No. A B C D E F Load Kg Weight Kg
PSF200/55 200 55 75 240 - 70 1800 3.3
PSF250/55 250 55 75 100 - 70 2245 5.5
PSF300/60 300 60 125 345 - 80 3500 7
PSF350/60 350 60 125 395 - 80 4100 9
PSF400/70 400 70 130 450 - 100 5500 12

Other bore sizes and types available on request, including imperial
