Home | Toggle Clamps | Pneumatic Toggle Clamps | Pneumatic Power Clamps | Steel Body

Steel Body

  • Range:Toggle Clamps
  • Category:Pneumatic Toggle Clamps
  • Group:Pneumatic Power Clamps
  • Style:Steel Body
Search on complete or part product code
Select product to view cad download options

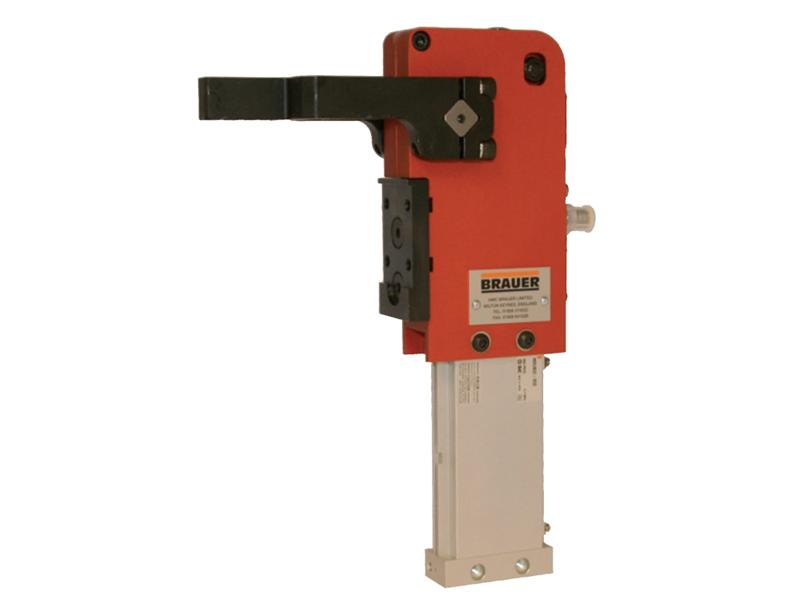

Steel Body
Steel Body

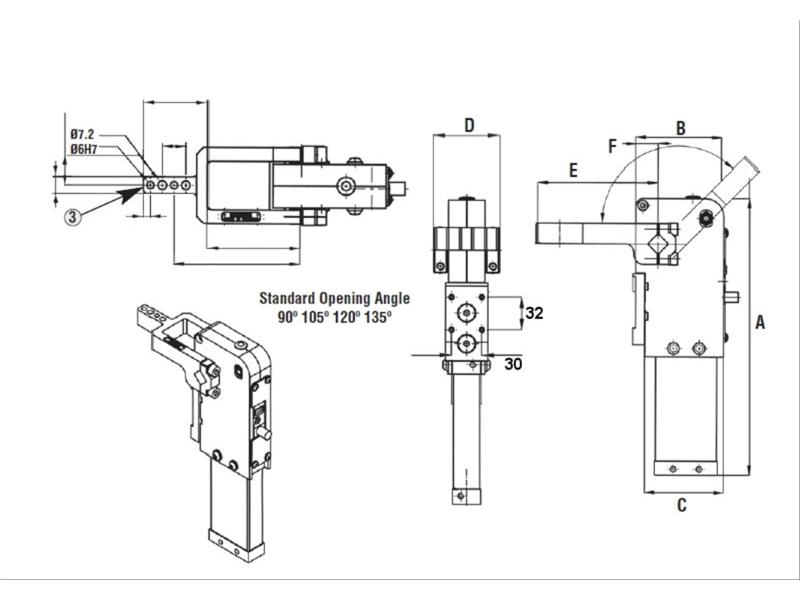

DrawingsPDF
Part No. A B C D E F G H Holding Moment Clamping Moment Piston diameter Cylinder Port
BPC25H30135S 305 102 85 64 133 27 32 30 200Nm 65Nm 25 M5
BPC25H31135S 305 102 85 64 133 27 32 30 200Nm 65Nm 25 M5
BPC25V30135S 305 102 85 64 133 27 32 30 200Nm 65Nm 25 M5
BPC25V31135S 305 102 85 64 133 27 32 30 200Nm 65Nm 25 M5
BPC32H30135S 312 102 85 64 133 27 32 30 400Nm 140Nm 32 G1/8
BPC32H31135S 312 102 85 64 133 27 32 30 400Nm 140Nm 32 G1/8
BPC32V30135S 312 102 85 64 133 27 32 30 400Nm 140Nm 32 G1/8
BPC32V31135S 312 102 85 64 133 27 32 30 400Nm 140Nm 32 G1/8
