Steel Flat Tread

  • Range: Wheels & Castors
  • Category:Castors
  • Group:QZ Series (4200kg)
  • Style:Steel Flat Tread
Search on complete or part product code

The QZ range of heavy duty industrial castors are available with individual wheel locks (W) and individual swivel locks (D) if either or both are required simply add "D" or "W" as suffix's to the part numbers below.
Steel Flat Tread
Steel Flat Tread

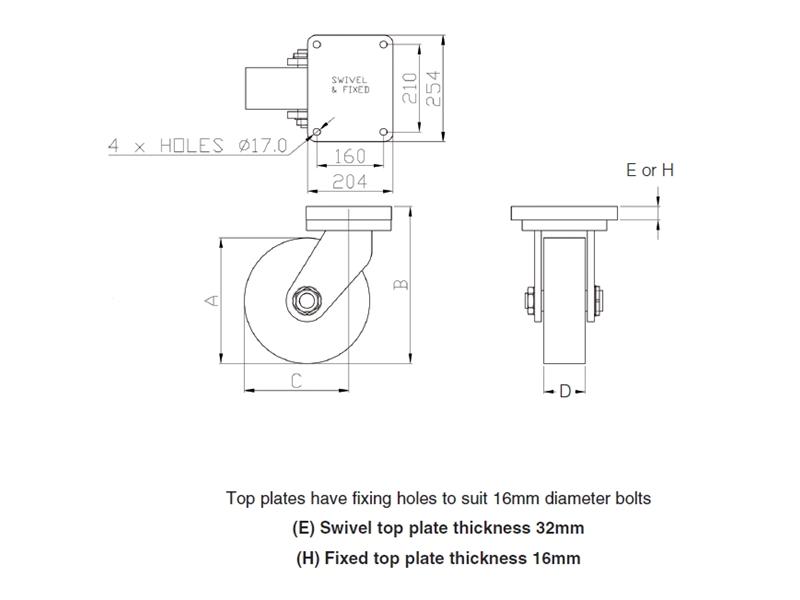

DrawingsPDF
Part No. A B C D Load Rating Fixed/Swivel
QZS/SFT200/90TB 200 325 200 90 4200kg Swivel
QZF/SFT200/90TB 200 325 90 4200kg Fixed

Various wheel options available
