Home | Toggle Clamps | Manual Toggle Clamps | Heavy Duty Vertical Toggle Clamps | Straight Base Solid Arm

Straight Base Solid Arm

  • Range:Toggle Clamps
  • Category:Manual Toggle Clamps
  • Group:Heavy Duty Vertical Toggle Clamps
  • Style:Straight Base Solid Arm
Search on complete or part product code
Select product to view cad download options

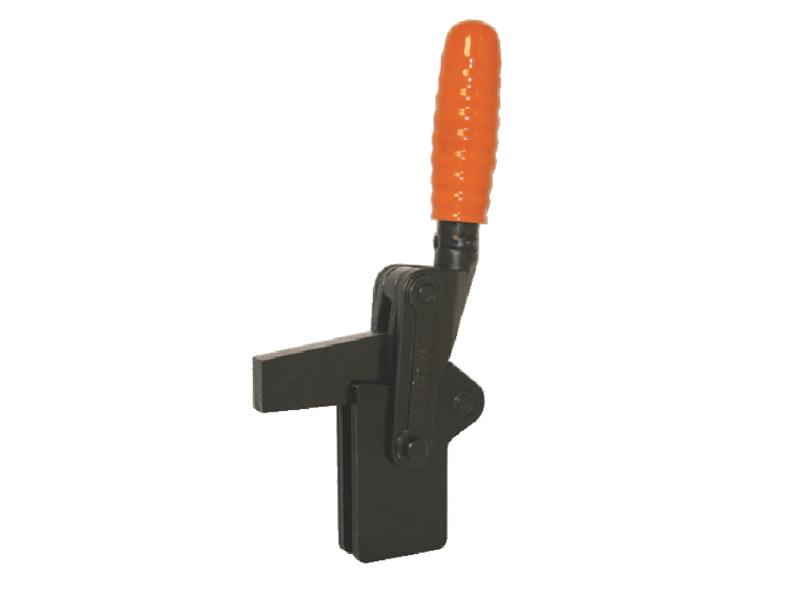

Straight Base Solid Arm
Straight Base Solid Arm

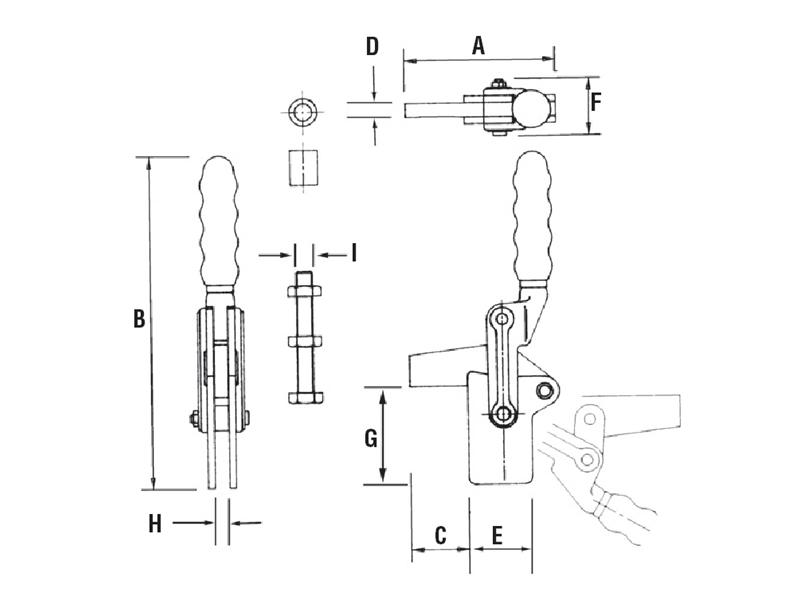

DrawingsPDF
Part No. A B C D E F G H Nominal Force Weight (Kg)
VA700/1A 105 235 40 10 45 43 70 10 700daN 1.10Kg CAD / BUY
VA1200/1A 124 276 50 12 50 48 86 12 1200daN 1.80Kg CAD / BUY
VA2400/1A 163 318 60 16 63 62 105 16 2400daN 3.75Kg CAD / BUY
