Home | Toggle Clamps | Manual Toggle Clamps | Heavy Duty Vertical Toggle Clamps | Straight Base Stub Arm

Straight Base Stub Arm

  • Range:Toggle Clamps
  • Category:Manual Toggle Clamps
  • Group:Heavy Duty Vertical Toggle Clamps
  • Style:Straight Base Stub Arm
Search on complete or part product code
Select product to view cad download options
Straight Base Stub Arm
Straight Base Stub Arm

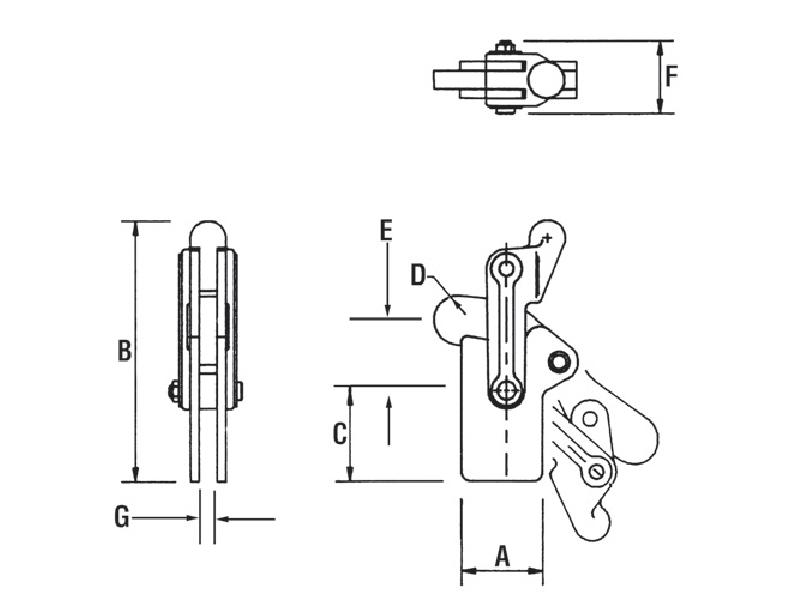

DrawingsPDF
Part No.
VA300T 27 86 30 R10 31 26 6 12 300daN 0.15Kg CAD / BUY
VA700T 45 144 50 R14 52 43 10 20 700daN 0.80Kg CAD / BUY
VA1200T 50 177 63 R19 73 48 12 22 1200daN 1.45Kg CAD / BUY
VA2400T 63 220 76 R22 91 62 16 30 2400daN 2.90Kg CAD / BUY
