Swivel Base Stub Arm

  • Range:Toggle Clamps
  • Category:Manual Toggle Clamps
  • Group:Heavy Duty Vertical Toggle Clamps
  • Style:Swivel Base Stub Arm
Search on complete or part product code
Select product to view cad download options
Swivel Base Stub Arm
Swivel Base Stub Arm
DrawingsPDF

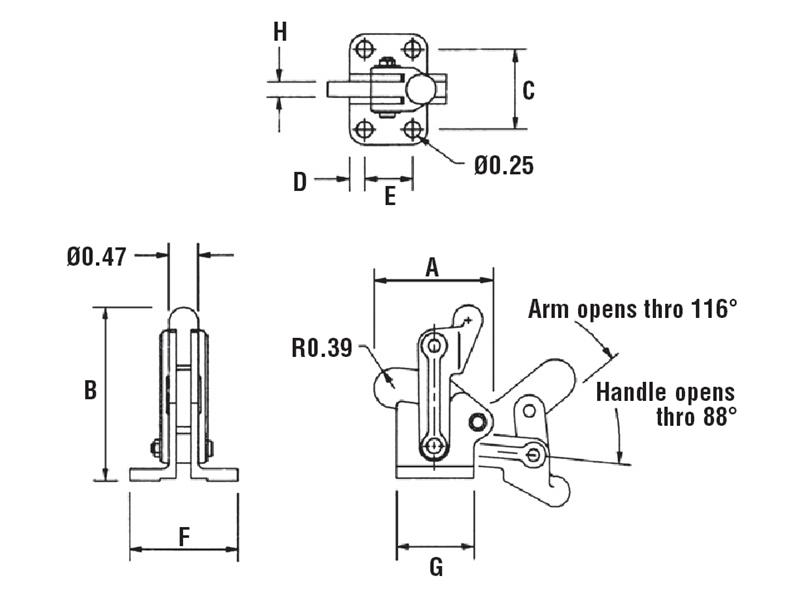

Part No. A B C D E F G Holding Force Weight
VA300S 18 66 10 31 6 26 R10 300daN 0.15Kg CAD / BUY
VA700S 29 114 20 52 10 43 R14 700daN 0.70Kg CAD / BUY
VA1200S 38 139 28 73 12 48 R19 1200daN 1.30Kg CAD / BUY
VA2400S 52 177 33 91 16 62 R22 2400daN 2.90Kg CAD / BUY
