Home | Wheels & Castors | Castors | Twin Wheel T Series (5000kg) | Swivel Castor

Swivel Castor

  • Range: Wheels & Castors
  • Category:Castors
  • Group:Twin Wheel T Series (5000kg)
  • Style:Swivel Castor
Search on complete or part product code

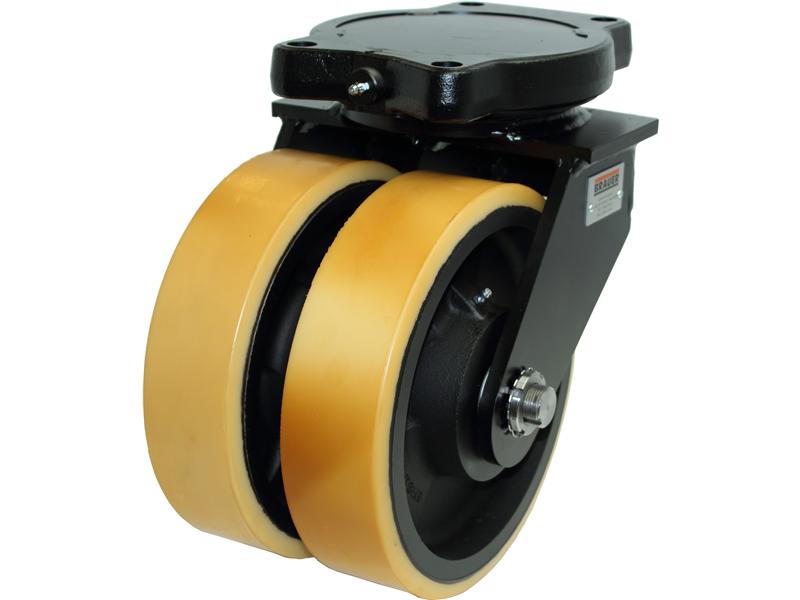

2TS & 2TF Twin Wheel heavy duty industrial castors are based on the "T" series swivel design, fitted with two "Heavithane" Vulkollan Polyurethane tyred wheels up to 300mm diameter by 75mm wide. Using 2 wheels allows for heavier loads without needing to increase the diameter of the wheels thus retaining a compact overall height. Heavithane tyres offer comparatively low tractive effort, low noise, high wear resistance and running surface preservation * Max towing speed 6kph
Swivel Castor
Swivel Castor

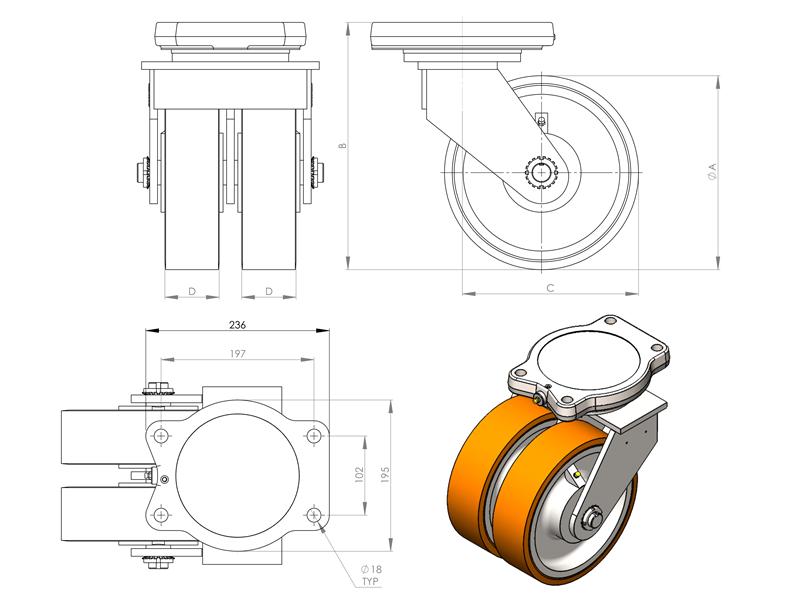

DrawingsPDF
Part No. A B C D Load Capacity (kg) Wheel Type
2TS/H200/75TB 200 268 232 75 3500kg Polyurethane Direct Bond
2TS/H250/70TB 250 319 254 70 4000kg Polyurethane Direct Bond
2TS/H300/75TB 300 369 279 75 4600kg Polyurethane Direct Bond
2TS/NFT200/75TB 200 268 232 75 4000kg Nylon Flat Tread
2TS/NFT250/70TB 250 319 254 70 4500kg Nylon Flat Tread
2TS/NFT300/75TB 300 369 279 75 5000kg Nylon Flat Tread
2TS/SFT200/75TB 200 268 232 75 4000kg Steel Flat Tread
2TS/SFT250/70TB 250 319 254 70 4500kg Steel Flat Tread
2TS/SFT300/75TB 300 369 279 75 5000kg Steel Flat Tread

Various wheel options available
