Untyred Nylon

  • Range: Wheels & Castors
  • Category:Heavy Duty Industrial Wheels
  • Group:Nylon Wheels
  • Style:Untyred Nylon
Search on complete or part product code

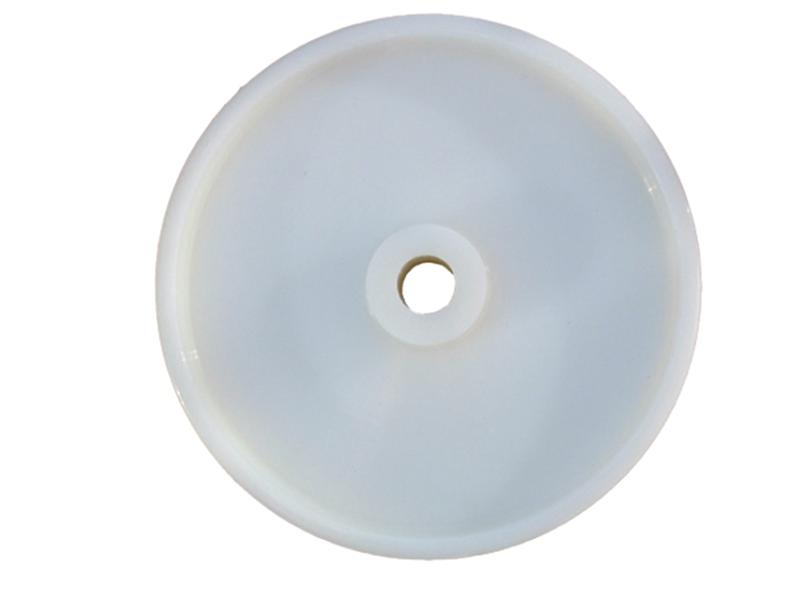

Plain untyred nylon wheels are the least expensive industrial wheels option, these light weight wheels are resistant to abrasion, impact and corrosion and the effect of many chemicals. They can be fitted with bearings but are normally used with their nylon bores running on a smooth steel axle.
Untyred Nylon
DrawingsPDF
Part No. A B C Max E Max Load Weight Kg Load Rating
N50/14/PBM12 50 14 12 20 80 0.03
N63/23/PBM11 63 23 11 20 85 0.05 85Kg
N75/25/PBM12 75 25 12 23 120 0.07 120Kg
N100/32/PBM15 100 32 15 29 225 0.15 225Kg
N150/40/RBM20 150 40 20 48 500 0.5 500Kg
N250/60/BJM25 250 60 25 114 2000 2.3 2000Kg

Other bore sizes and types available on request, including imperial
