Vertical Stainless Steel Latch Clamps

  • Range:Toggle Clamps
  • Category:Manual Toggle Clamps
  • Group:Toggle Latches/Latch Clamps
  • Style:Vertical Stainless Steel Latch Clamps
Search on complete or part product code

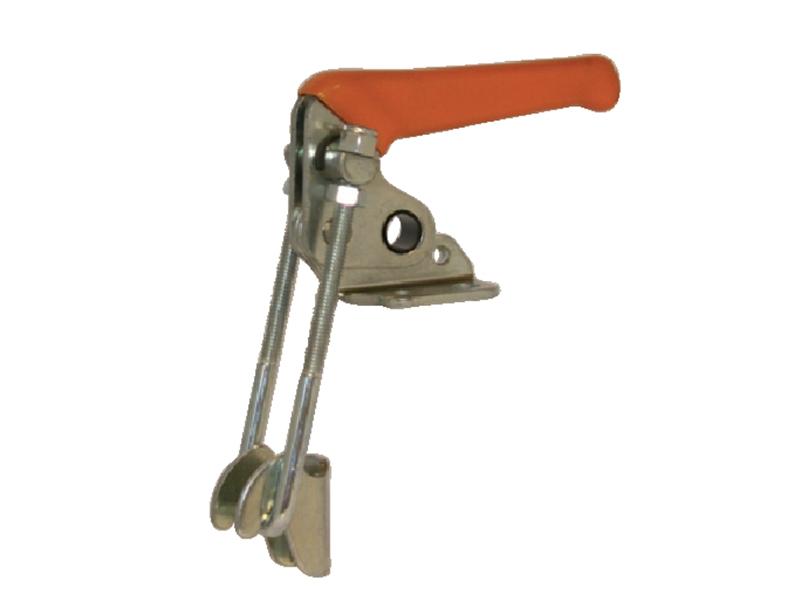

Stainless Steel Vertical Latch Clamps

Select product to view cad download options
Vertical Stainless Steel Latch Clamps
Vertical Stainless Steel Latch Clamps
DrawingsPDF

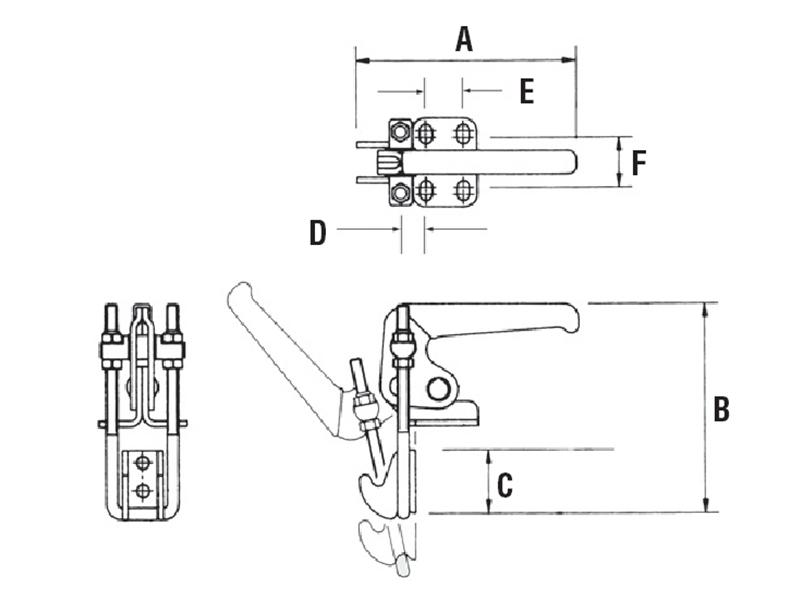

Part No. A B C D E F Holding Force Weight
LU200VSS 76 90 23 5.2 13 19 200daN 0.05Kg CAD / BUY
LU400VSS 115 123 32 6.5 19 25 400daN 0.25Kg CAD / BUY
LU700VSS 152 164 40 8.5 32 36 700daN 0.70Kg CAD / BUY
