Home | Wheels & Castors | Jacking Castors | JGG (1000kg) | c/w Poly Tyred Wheel

c/w Poly Tyred Wheel

  • Range: Wheels & Castors
  • Category:Jacking Castors
  • Group:JGG (1000kg)
  • Style:c/w Poly Tyred Wheel
Search on complete or part product code

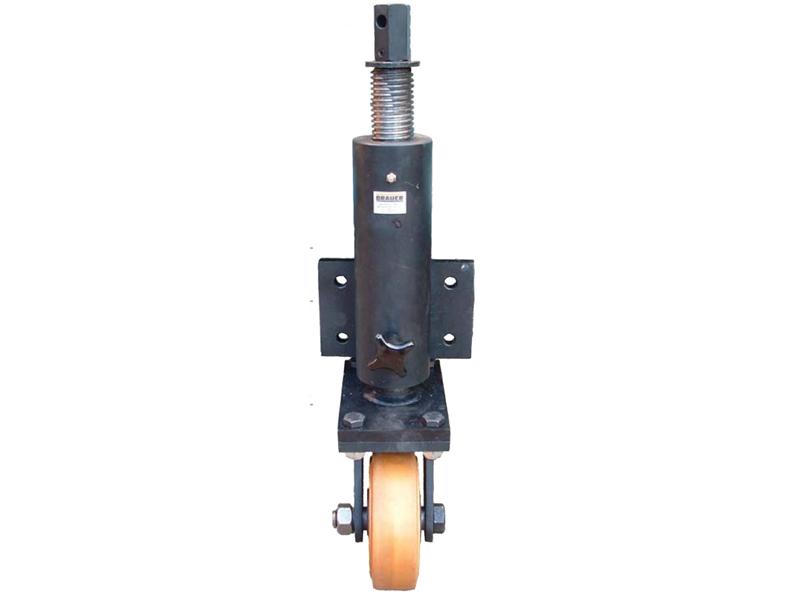

Brauer have developed a range of jacking units expanding further the comprehensive range of heavy duty castors and wheels. The jacking units are highly adaptable across a broad range of environments and applications. Many options are available giving this new product unsurpassed flexibility for the worlwide market place. Availability and delivery is enhanced due to products being totally manufactured within the wheels and castors division based in the UK. The Brauer robust design provides load ratings up to 1000kg per unit with an integral swivel mechanism incorporated into jacking castor which is designed to suit our GG fixed castor range. Wheel options from 100mm to 250mm wheel diameter. Wheel options include steel, polyurethane and nylon. Jacking units now form part of Brauer's comprehensive range of wheels and castors. Approximate weight: 25Kg
c/w Poly Tyred Wheel
c/w Poly Tyred Wheel

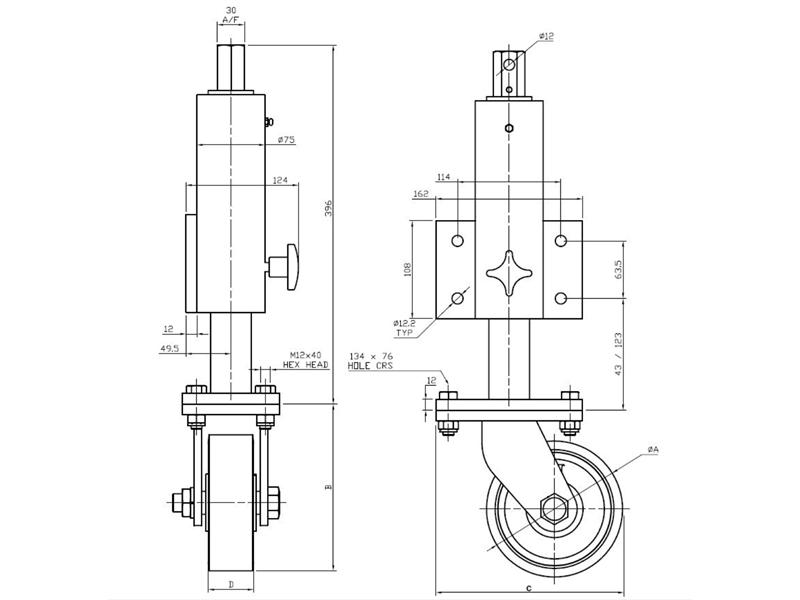

DrawingsPDF
Part No. Wheel Diameter Overall Castor Height Swivel Radius Tread Width Max Load Rating Wheel Bearing Type Approx. Weight
JGG/H100/40BJ 100 133 90 40 450kg Ball Bearings 21.5kg
JGG/H150/50BJ 150 206 125 50 900kg Ball Bearings 22.5kg
JGG/H200/40BJ 200 235 160 40 900kg Ball Bearings 24.5kg
JGG/H250/45BJ 250 286 195 45 1000kg Ball Bearings 29.5kg
