CA Series Axles

  • Range: Wheels & Castors
  • Category:Axles & Axle Bracket Assemblies
  • Group:Axles
  • Style:CA Series Axles
Search on complete or part product code

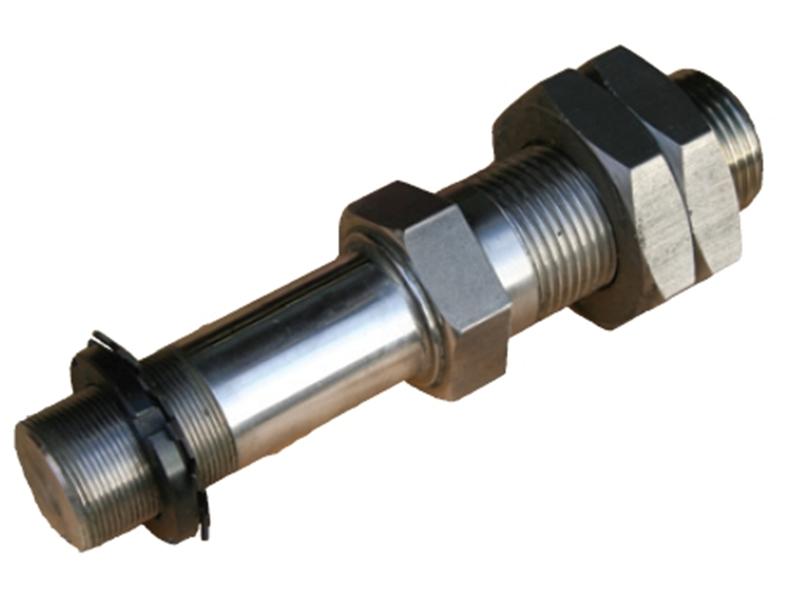

CA Series Axles
CA Series Axles

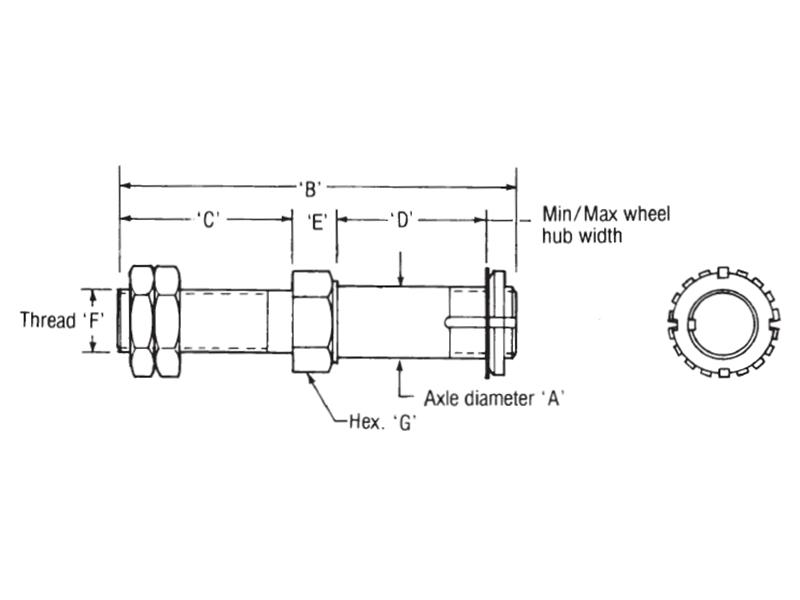

DrawingsPDF
Part No. A Load Kg B C D Min D Max E F G
CA20 20 350 119 50 35 45 15 M27x2.0 32
CA25 25 600 137 60 40 52 15 M30x2.0 36
CA30 30 825 170 75 50 65 20 M36x3.0 46
CA35 35 1100 207 90 60 85 20 M42x3.0 50
