Home | Wheels & Castors | Heavy Duty Industrial Wheels | Cast Iron Wheels | Cast Iron Single Flanged

Cast Iron Single Flanged

  • Range: Wheels & Castors
  • Category:Heavy Duty Industrial Wheels
  • Group:Cast Iron Wheels
  • Style:Cast Iron Single Flanged
Search on complete or part product code

Heavy duty wheels and rail wheels are synonymous with Brauer. Using the very best high grade cast iron and offering a wide variety of diameters and load capabilities puts Brauer firmly at the top when it comes to ensuring safety and long working life of industrial wheels. Brauer can also work with the customer or designer to quote on any bespoke wheel should the exact need not be found from our standard range.

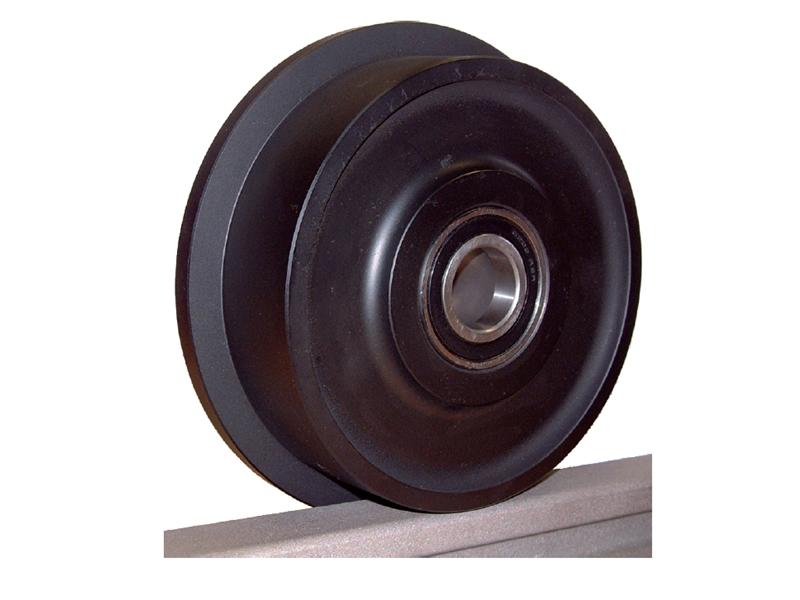

Cast Iron Single Flanged
Cast Iron Single Flanged

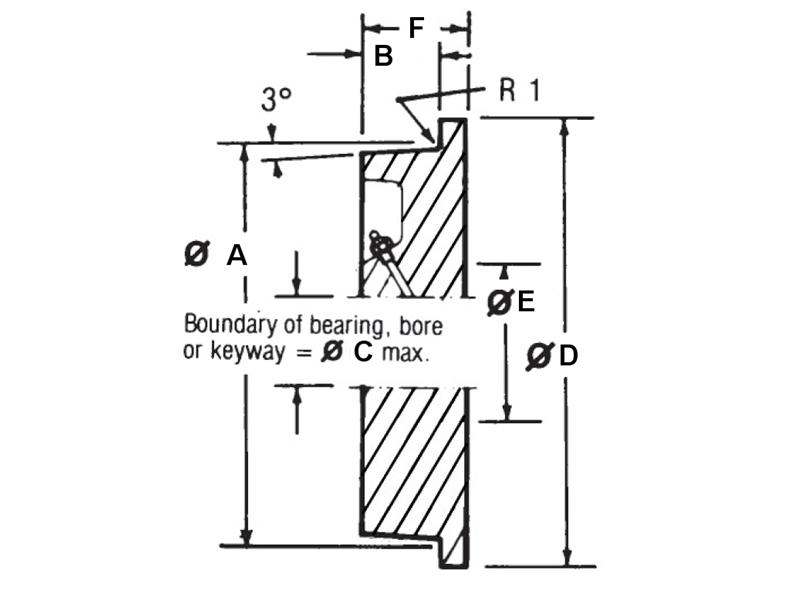

DrawingsPDFCAD Download
Part No. A B C D E F Load Kg Weight Kg
CSF63/25 63 25 38 88 - 37 200 1
CSF75/25 75 25 50 100 - 37 250 1.5
CSF100/25 100 25 75 125 - 37 300 2.5
CSF133/35 133 35 50 160 - 47 600 4.5
CSF150/40 150 40 60 185 80 52 800 4.5
CSF200/40 200 40 60 235 80 52 1000 6.5
CSF225/55 225 55 80 260 110 70 1600 15
CSF250/50 250 50 75 285 100 65 1600 18
CSF300/60 300 60 80 345 110 80 2300 28

Other bore sizes and types available on request, including imperial
