Home | Wheels & Castors | Heavy Duty Industrial Wheels | Nylon Polyamide 6 (cast) | Double Flanged

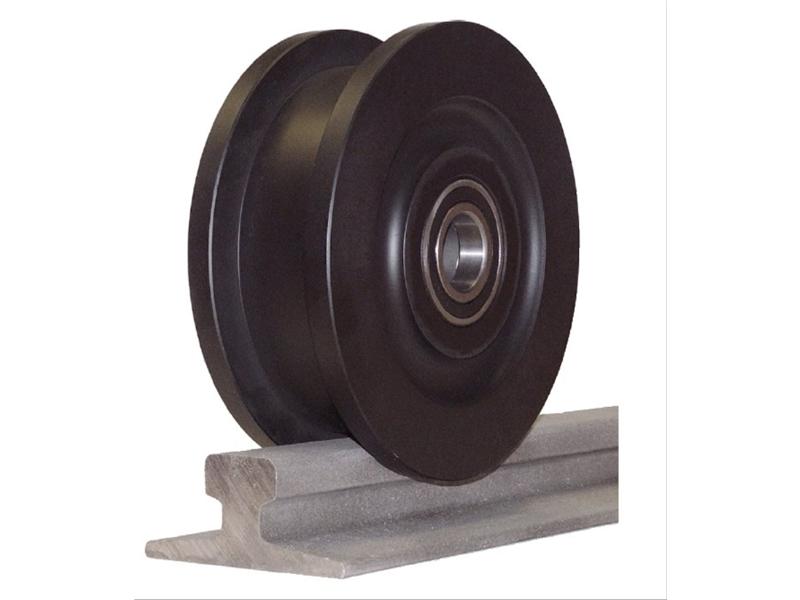

Double Flanged

  • Range: Wheels & Castors
  • Category:Heavy Duty Industrial Wheels
  • Group:Nylon Polyamide 6 (cast)
  • Style:Double Flanged
Search on complete or part product code

Colour: Black

Main characteristics:
-Tough and hard
-UV and weathering resistant
-Good sliding properties even in dry running conditions
-Resistant to many oils, greases, diesel, petrol
-Not electrically insulating
-Increased surface hardness
Double Flanged
Double Flanged

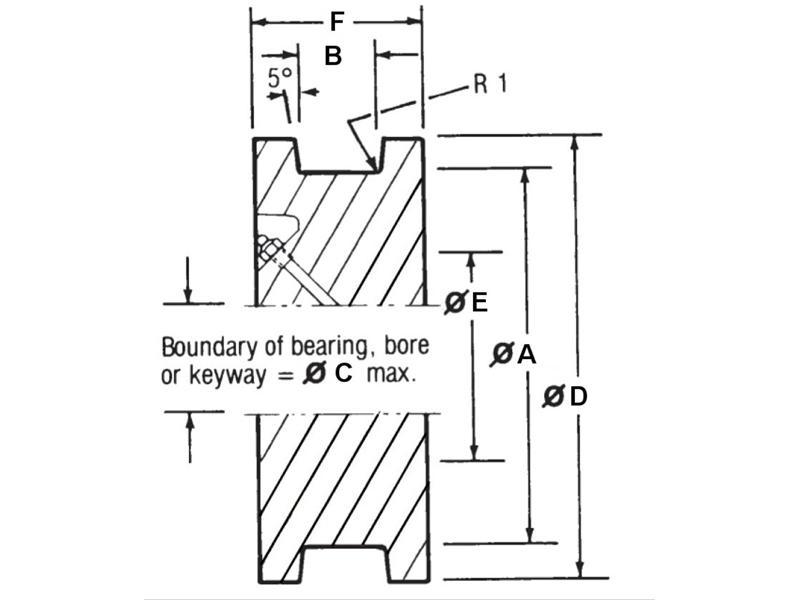

DrawingsPDF
Part No. A B C D E F Load Kg Weight Kg
PDF200/60 200 60 150 240 - 100 1960 4 Show Variants
PDF250/60 250 60 125 295 - 100 2450 5.5 Show Variants
PDF300/60 300 60 125 345 - 100 3530 8 Show Variants
PDF350/60 350 60 150 395 - 110 4120 11 Show Variants
PDF400/60 400 60 150 450 - 110 4770 14 Show Variants

Other bore sizes and types available on request, including imperial
