High Temperature Airmovers

  • Range:Air Amplifiers
  • Category:High Temperature Air Amplifiers
  • Group:High Temperature Adjustable Airmovers
  • Style:High Temperature Airmovers
Search on complete or part product code

The Brauer Airmover air amplifier uses compressed air as the medium to create an efficient vacuum which then allows the removal of smoke, particles, powders and general fumes using just a small amount of compressed air as the power source.

Airmover amplifiers entrain very large volumes of air from the surrounding ambient air to magnify into higher velocity and high volume outlet flows. Brauer Airmovers are efficient and quiet, producing outputs up to 25 times their input consumption rate.

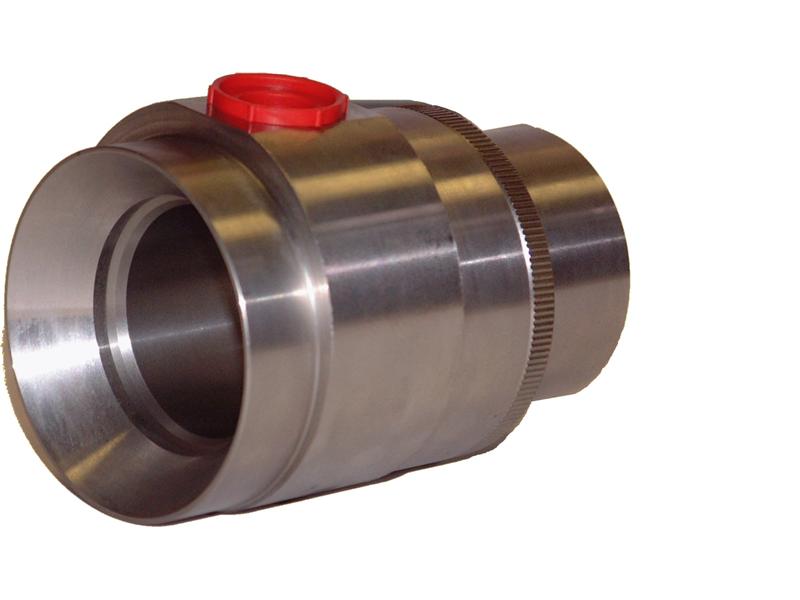

High temperature stainless steel Brauer Airmovers are used when there is a need to make the impossible possible and move air flows in environments with temperatures up to 370 degrees Celsius. Brauer uses 316 stainless steel material to manufacture the high temperature adjustable Airmovers.

High Temperature Airmovers
High Temperature Airmovers

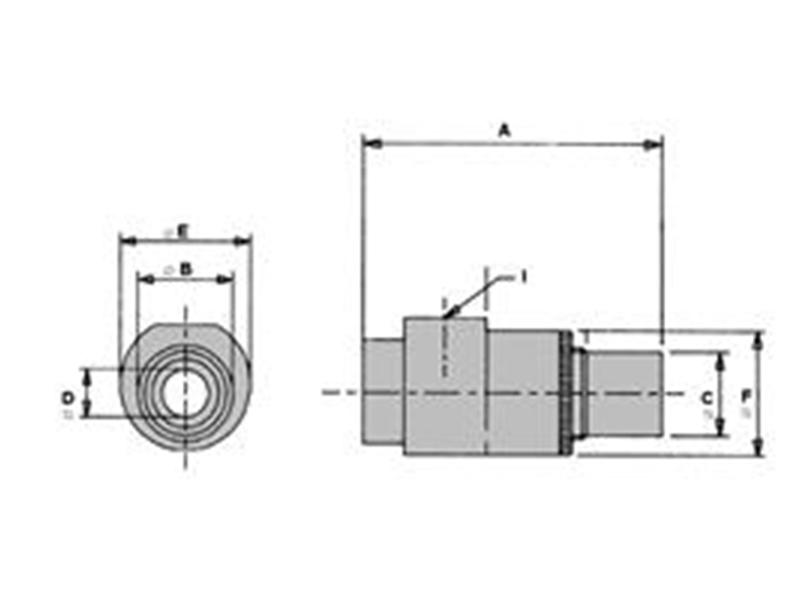

DrawingsPDFCAD Download
Part No. A B C D E F G Max. Temp.
SS10A/HT 73 25 20 10 35 30 G1/8 370C CAD / BUY
SS20A/HT 74.5 38 30 20 44.5 38 G1/4 370C CAD / BUY
SS40A/HT 98 50 63.5 40 70 63.5 G3/8 370C CAD / BUY
SS60A/HT 95 76 95 60 115 90 G3/8 370C CAD / BUY
SS75A/HT 132 96 118 75 135 112 G1/2 370C CAD / BUY
SS125A/HT 225 175 175 125 199 186 G3/4 370C CAD / BUY
