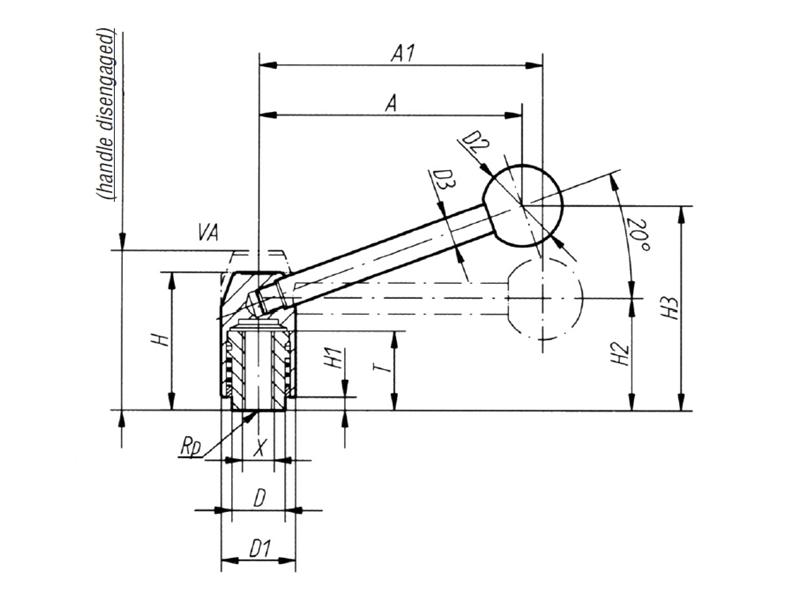

Internal Thread - 0 Degree Handle
Internal Thread - 0 Degree Handle
DrawingsPDF
Part No. X T D D1 D2 D3 H H1 H2 H3 H4 A A1
0510800000 M8 23 17 24 25 10 44 4 36.5 64 49 81 87
0511000000 M10 23 17 24 25 10 44 4 36.5 64 49 81 87
0521000000 M10 26 20 28 30 11 51 5 41.5 76 49 98 106
0521200000 M12 26 20 28 30 11 51 5 41.5 76 57 98 106
0531200000 M12 30 24 33 32 12 57 5 46 87 64 118 128
0531600000 M16 30 24 33 32 12 57 5 46 87 64 118 128
0541600000 M16 35 30 41 37 14 67 6 55 100 75 136 147
0542000000 M20 35 30 41 37 14 67 6 55 100 75 136 147
0542400000 M24 35 30 41 37 14 67 6 55 100 75 136 147
